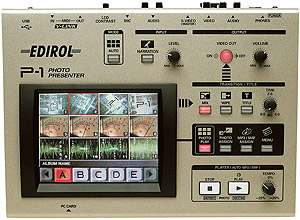

Don’t just play! PERFORM! The P-1 is an incredible new device for visual performance, audio playback, & MIDI playback. The P-1 is a V-LINK compatible photo player with Audio & MIDI playback capabilities. The P-1 is completely revolutionary! Never before has there been such an easy way to add visuals to your live stage performance.

The P-1 can be directly triggered from any V-LINK compatible MIDI device, meaning you can play it directly from a number of Roland, Boss, & Edirol products. The P-1 can hold up to 80 still images & a number of Audio & MIDI files for instant recall. The P-1 can trigger up to 30 frames per second, making it ideal for stop-frame animation with your stage performance.

The P-1 is also ideal as a MIDI sequence player. With its large touch-screen user interface, the P-1 is ideal for the one-man band for selecting & triggering songs for the set. It includes a tempo control knob for adjusting the playback speed in real time, and images can be triggered in time with the sequence for a more impressive performance.

Audio can also be linked to picture files, allowing the P-1 to playback appropriate music or commentary for the selected image source. This is particularly effective for presentations & memorials. The P-1 has both line & Mic input, allowing the user to record audio directly into the P-1 without the need of a computer. Pictures can also be loaded directly into the P-1 from the PC Memory card adapter, allowing you to quickly import pictures from your digital camera for your presentation or performance.

The P-1 has a built in virtual keyboard for creating Titles. You can key them over your pictures for captions, announcements, names of performers, and any other purpose-all without the need of a computer.

The P-1 an incredibly versatile, easily used audio/visual performance tool for stage musicians & other performers. It requires no previous experience or knowledge of video in order to perform. Bring your performance alive with the P-1!

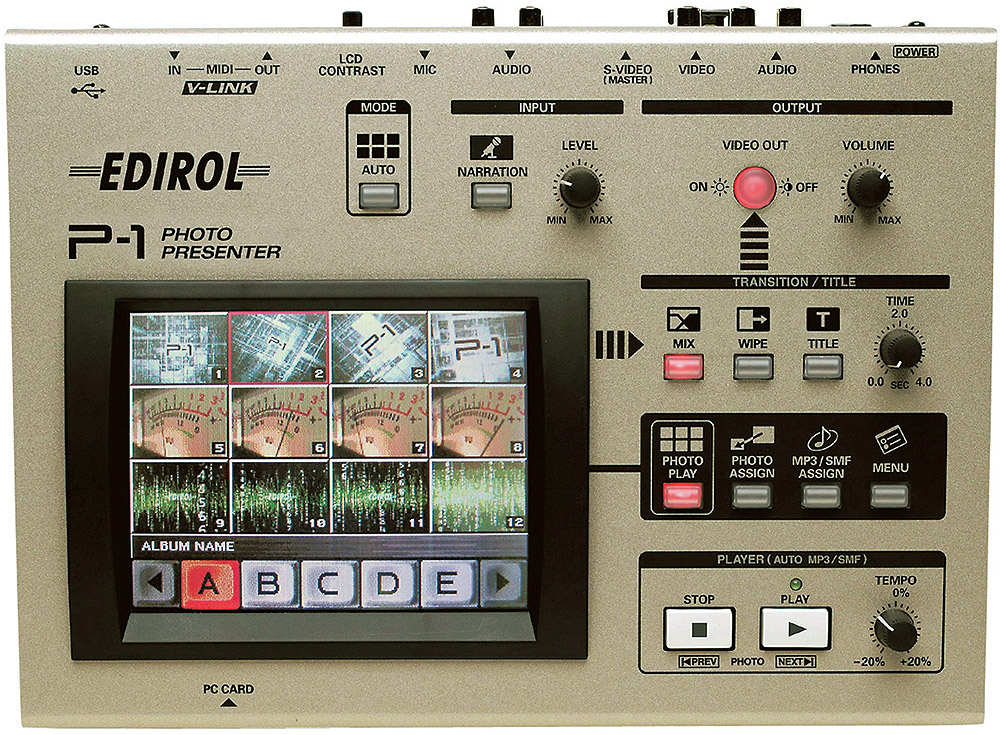

Large color LCD Touch Screen interface
Transition Effects: The P-1 offers Dissolve & Slide transitions, as well as composition effects such as Chroma-Key.
Link images to audio files: The P-1 allows the user to link audio or MIDI files directly to stored images.
Using the virtual keyboard or drawing by hand on the touch panel, you can create images & titles without the use of an external device.
The P-1 can capture audio directly into memory from the microphone or line inputs.

Import Media directly from the Computer: The P-1 can connect directly through USB to transfer image, audio, & MIDI files directly from the computer to the P-1.
V-Link: Using V-Link, the P-1 can be completely controlled through an external MIDI device, such as the Edirol PCR-50 or Roland MC-909
Audio Trigger: The P-1 can automatically switch pictures determined by audio levels, allowing for beat-synced image transitions.

Target Applications

Source for VJ Performance
Titling & image recall for live events & corporate presentations
Portable MIDI File Player

Specifications

5.7" color LCD Touch Panel Display, QVGA (320 x 240 pixel)

PC Card (compatible with any storage memory devices)

Maximum still pictures stored: 80 pictures

Internal Memory: 64MByte SDRAM (USB 1.1 compatible, for both Win/Mac)

External Memory (attached): 128MByte Compact Flash with PC Card Adaptor (Supports multiple memory formats.)

Format (Picture):Å@JPEG,BMP (The picture data is saved at the size of 640x480.)

Format (Audio):Å@WAV, AIFF, MP3

Power: AC Adaptor; Weight: 2.0kg

NTSC/PAL selectable

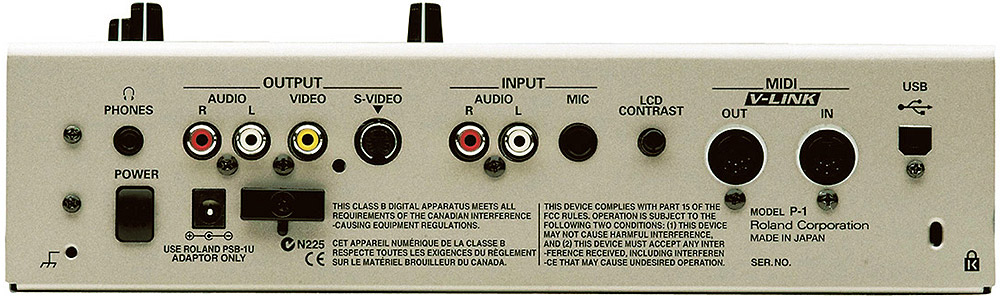

RCA & Microphone input

RCA Audio output

S-Video & Composite output

Headphone Output
