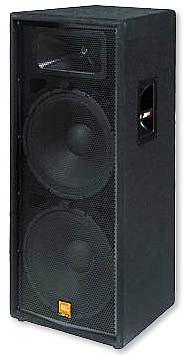

Dual 15 Inch 3-Way Sound Reinforcement Speaker

Product Code 22843

Retail Price
Sale Price!
Buy Today and Save $300.00 (43% from Retail)

We're sorry, this product is no longer available.


This amazing dual 15" 2-way system functions as a quasi 3-way: the upper woofer covers lows and mids, and the lower woofer crossed so it covers only lows acting as a built-in subwoofer. With American-made JBL drivers, beefy JBL crossovers, MDF cabinets, heavy-duty recessed handles, curved steel grilles, and rugged carpet covering, JRX100 speakers are road-tough and have the renowned JBL sound. Also features Progressive Transition Wave Guide horn design for enhanced high-end performance and SonicGuard circuitry to protect driver voice coils from feedback and clipping damage.

0   0


Dual 15" woofers
2" high frequency compression driver with 1" exit
Progressive Transition Waveguide horn
System functions as quasi 3-way
3/4" acoustically-superior MDF cabinet
Trapezoid cab design for excellent projection
500W continuous power capacity
1000W peak power capacity
Heavy-duty recessed handles
Heavy steel grille
1/4" and Speakon connectors
SonicGuard® protection circuitry
18-1/4"W x 43-1/4"H x 17"D
94 lbs.

Frequency range (-10dB): 38Hz - 16kHz
Frequency response (±3dB): 50Hz - 12.5kHz
Sensitivity (1w/1m): 100dB SPL
Nominal impedance: 4 ohms
Power capacity: 500W continuous, 1000W peak
Maximum SPL: 133dB
Nominal dispersion: 90¡ x 50¡
Crossover frequency: 2kHz
