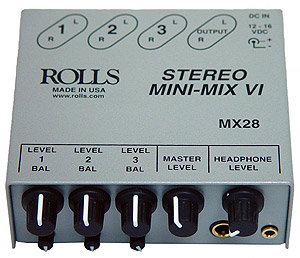

The MX28 is a three-channel true stereo line mixer. Each channel has an individual 1/4" input for the right and left sides, and the outputs are individual right and left 1/4" jacks. Each channel has a level and pan (balance) control. The Master Level controls the output volume and the Headphone Level controls the level to the two headphone outputs.

MPN: MX28
UPC: 675889002805

• 3: Stereo 1/4" Stereo Inputs

• True stereo 1/4" outputs, unbalanced

• Two Headphone Outs (1/4" and 3.5mm)

• Pan control for each channel


• Input Impedance: 10K Ohms

• Output Impedance: 100 Ohms

• Max Gain: +27 dBV

• Max Input Level: +30 dBV

• Max Output Level: +13 dB

• Frequency Response: 20Hz - 20kHz +/- 1 dBV

• THD + Noise: <.005%

• Power: 12 VDC 150 mA adapter (center negative)

• Size: 4.25" x 1.75" x 4.5" (WxHxD)

• Weight: 1.2 lbs. (.49 Kg)
