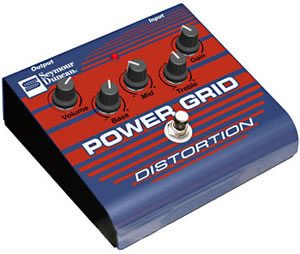

Seymour Duncan SFX-08 Power Grid

Power Grid Overdrive/Distortion Pedal

Product Code 43564

Retail Price
$149.00
Sale Price!
$99.95
Buy Today and Save $49.05 (33% from Retail)

We're sorry, this product is no longer available.

8thstreet Reward$
Found a Lower Price?
Call 1-800-878-8882
Click here to let us know now!

Manufacturer
Seymour Duncan

As a guitarist, when you need power, it's generally because you want to lay down chunky rhythms or you need to bust out a blazing solo. Enter the Power Grid, Seymour Duncan's newest stompbox, which is designed to provide powerful overdrive and distortion suitable for rhythm and lead playing, thanks to five stages of class A, discrete circuitry, which are cascaded to provide nearly 100dB of gain. Now that's power!

But the Power Grid is not an untamed beast. All this raw horsepower is managed by a multi-element gain and volume control system that allows fine control. For example, if you crank the gain, you'll get a very thick, saturated "Modded British" distortion, reminiscent of the big guitar sounds that defined metal. But if you back the gain off, you'll get a very responsive "crunch" distortion similar to the Rhythm Channel on the SFX-03 Twin Tube Classic. And in between there are myriad levels of overdrive and distortion.

With the Power Grid, your tone is further refined thanks to a three bands of active EQ. Each band allows for up to 12dB of boost or cut at frequencies selected for maximum control of the electric guitar. This allows you to create tones with a far greater degree of surgical precision than what's possible with any distortion pedal with passive EQ. With all the power and control built into the SFX-08 Power Grid, it could just be the last distortion pedal you buy. Ever!



0   0

UPC: 800315034376

Applications:
High gain, solid state distortion stompbox capable of myriad tones thanks to a three-band active EQ section. Perfect for all genres of rock.


Specifications:
• Gain Range: 0 – 97dB
• Input Impedance: 100KOhm
• Output Impedance: 25KOhm
• Max Output before Saturation: 2.6Vrms
• S/N Ratio: 120dB referred to the input with 20KOhm
source impedance
• THD @ 1Vrms out @ 1 KHz with 60dB of gain: 0.12%
• Type of Circuitry: Discrete, class A Bi-polar Transistor
• Power: DC 9 – 12V; Battery or Regulated DC Adapter
• Current Consumption: 4.5 mA Max
• Dimensions: 5.50" Wide X 5.20" Deep X 2.20" Tall
• Weight: 1.9 Lbs.
• Chassis Material: 16 Gauge Steel
