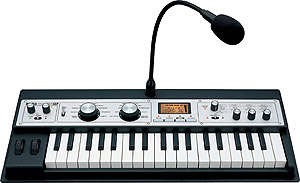

Korg MicroKORG XL

37-key Protable Music Synthesizer & Vocoder

Product Code 44929

Retail Price
$750
Sale Price!
$429.99
Buy Today and Save $320.01 (43% from Retail)

We're sorry, this product is no longer available.

8thstreet Reward$
Found a Lower Price?
Call 1-800-878-8882
Click here to let us know now!

Manufacturer
Korg
Korg

For years, the microKORG has been the world's top-selling synthesizer. Now the microKORG XL is ready to join the Korg line-up. Based on the same winning combination of a small footprint, mini-keys, battery-powered portability and huge Korg sound, the microKORG XL is ready to expand your musical vocabulary. The fun factor is huge, too. A gooseneck microphone is included for instant vocoding excitement, right out of the box!

The microKORG XL carries a proud pedigree. The MMT (Multi Modeling Technology) sound engine is descended from the RADIAS/R3 synthesizers, while the dual effects processors come down from the famous KAOSS line. The microKORG XL offers remarkable playability. The black key/white key proportions have been adjusted for easier chording; the key response has been improved for rapid-fire soloing. And the old -school square front keys? Well, they look wicked cool. Together with a sound-bending vocoder and six-pattern arpeggiation, microKORG XL packs a powerful sonic punch.

The eight-voice MMT synth engine offers traditional analog waveforms plus a total of seven algorithms, including formant waveforms, noise, and PCM/DWGS waves for those vintage keyboards and strings. Cross-modulation, unison stacking, and VPM (Variable Phase Modulation) let you create sounds that would be impossible for a conventional PCM synthesizer. Sync and ring modulation make it easy to create complex and powerful sounds. Two multi-mode filters, a drive/waveshaping circuit for distinctively distorted sounds, and EG and LFO for creating time-varying tonal change, provide plenty of parameters for serious synthesis. Virtual Patching brings it all together.

Seventeen up-to-the-minute effects deliver everything from a traditional chorus to grain shifting. In The delay effects can be synchronized to MIDI clock for "beat-sensitive" situations. You can even process external sounds! The microKORG XL's amazing vocoder adds vocal characteristics to any sound, creating everything from pseudo choirs and talking instruments to vintage Sci-Fi robots. Our unique Formant Hold allows you to freeze the vocal input for continuous vocoder effects. Use the Formant Shift function to adjust the level and pan of each of the sixteen bands, greatly altering the tonal character. The distinctive retro-styling allows for quick selection of any of the 128 on-board, editable programs. For the diehard synthesists and sound designers, you can use the three performance edit knobs for fast, effective editing in performance. You're also free to select and assign your favorite parameters. Download the free Editing software and manage sounds on your computer!



MPN MICROKORGXL 0 0

Item Number
MICROKORGXL

INTERFACE and KEYBED
- Display: Custom backlit LCD
- Keyboard: 37-note Natural Touch action
- Switches: 7; Bank (2 position), Octave Up and Down (toggle), timbre select (2 position), Arp On/Off, Vocoder On/Off, Write, Exit/Shift
- Knobs: 7; Volume, tempo, program select (genre and category), real-time assign, edit menu selector
- Wheels: Pitch and Modulation

PROGRAMS
- Polyphony 8 voices (up to 4 when the vocoder is selected)
- Program: 128
- Number of timbres Maximum 2 (when using Layer, Split, or Multi)
- Synth 2 oscillator + noise generator

Oscillator 1
- Waveform SAW, PULSE, TRIANGLE, SINE, FORMANT,
- NOISE, PCM/DWGS, AUDIO IN
- Modulation WAVEFORM, CROSS, UNISON, VPM

Oscillator 2
- Waveform SAW, PULSE, TRIANGLE, SINE
- Modulation RING, SYNC, RING+SYNC
- Wave shaping
- WS type DRIVE , DECIMATOR, HARDCLIP, OCT SAW,
- MULTI TRI, MULTI SIN, SUB OSC SAW, SUB
- OSC SQU, SUB OSC TRI, SUB OSC SIN, LEVEL
- BOOST

Multi-mode filters
- Filter 1 -24 dB/oct LPF – -12 dB/oct LPF, HPF, BPF, Thru
- Filter 2 LPF, HPF, BPF
- Vocoder 16-band vocoder, adjustable level and pan for each band, Format Shift function, Formant Hold function
- Keyboard 37-note (mini keyboard, velocity sensitive, no aftertouch)
- Effects Timbre: 2-band EQ
- Master: master effects (17 effect algorithms)
- Arpeggiator UP, DOWN, ALT1/2, Random, Trigger (6 types),
- Step Arpeggiator function
- Programs 128 programs (banks A/B x 8 genres x 8 categories)

CONNECTIONS

Input
- AUDIO IN [LINE] jack, AUDIO IN [MIC] jack(with AUDIO IN [MIC/XLR] switch)

AUDIO IN [LINE] jack
- Maximum input level+19 dBu
- Input source impedance8 ohms
- Connector1/4' phone jack (unbalanced)

AUDIO IN [MIC] jack
- Maximum input level-11 dBu
- Input source impedance7 k-ohms
- Connector XLR (balanced)

Output
- L/MONO, R jacks
- Maximum output level +6 dBu @ 10 k-ohm load
- Output source impedance1 k-ohm
- Connectors 1/4' phone jacks (unbalanced)

HEADPHONE jack
- Maximum output level 36 + 36 dBu @ 33 ohms load
- Output source impedance10 ohms
- Connector 1/4' stereo phone jack

MIDI
- IN, OUT
- USB connector B type

MISC
- Power supply DC9V
- Six AA batteries (Approximate lifespan is 4 hours with alkaline batteries)
- Included items – XLR Gooseneck Microphone with windscreen, Power Adapter
