JBL PRX618SXLF * One - Available

Subwoofer - 1000w 1x18 in.

Product Code 61810

Retail Price
$1849
Sale Price!
$999.00
Buy Today and Save $850.00 (46% from Retail)

Add to cart

Oversized Shipping Charge: $69.95
Click for Details
Click Here For Shipping Options

8thstreet Reward$
Found a Lower Price?
Call 1-800-878-8882
Click here to let us know now!

Manufacturer
JBL

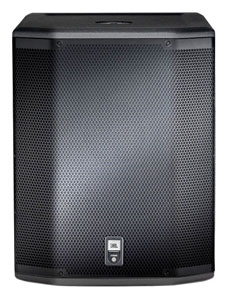

JBL provides the PRX618SXLF to provide extended low frequency operation to your PA System. Designed and engineered to provide accurate sub bass with incredible power, the PRX618SXLF can be used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system with extreme efficiency and control.

The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.

The PRX618SXLF is a high performance self-powered subwoofer system. The PRX618SXLF is comprised of a powerful 2268FF Differential Drive dual voice-coil and magnetic gap, neodymium woofer driven by a 1000 Watt (dual 500 watt) Crown Class-D power amplifier. Dual-Bridge Technology directly links discrete amplifier channel outputs to each voice coil in the Differential Drive woofer. Electrical power transfer to the transducer is optimized for more power performance. A proprietary DSP chip is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.

The amplifier input panel offers stereo inputs with XLR or 1/4 inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.

All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL's tour proven DuraFlex finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.



MPN PRX618SXLF 0 0

Item Number
PRX618SXLF

  • 1000 Watt Class-D, Crown digital amplifier with 133 db peak SPL
  • 18 inch Differential Drive dual voice-coil and magnetic gap, neodymium woofer
  • DSP input section with dbx Type IV limiter circuit
  • Crossover, dynamic limiting, component optimization and selectable system EQ
  • Professional XLR line and 1/4 inch Mic/Instrument inputs, with loop through
  • Obsidian DuraFlex coated plywood construction
  • Top panel M20 pole mount socket for sub/satellite configuration
  • Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip
  • System Type: Self powered 18 inch, bass-reflex
  • Maximum SPL Output: 133 dB peak
  • Frequency Range (-10 dB): 30 Hz - 105 Hz
  • Frequency Response (+/-3 dB): 39 Hz - 93 Hz
  • Input Connectors: Balanced XLR 1/4 inch combo jack with XLR loop-through (stereo)
  • Input Impedance: 20K ohms (balanced), 10K ohms (unbalanced)
