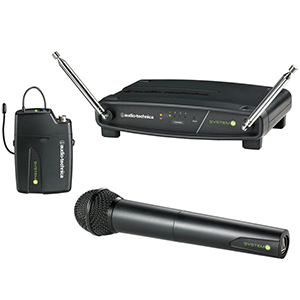

Audio Technica ATW-902

System 9 Frequency-agile VHF Wireless System ATW-R900 Receiver & ATW-T902 Handheld Dynamic Unidirectional Microphone/Transmitter

Product Code 66793

Retail Price
$299.95
Sale Price!
$169.95
Buy Today and Save $130.00 (43% from Retail)

Add to cart

This Item Ships FREE!
Click for Details
Click Here For Shipping Options

8thstreet Reward$
Found a Lower Price?
Call 1-800-878-8882
Click here to let us know now!

Manufacturer
Audio Technica

Audio-Technica's System 9 is a four-channel frequency-agile wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Featuring sleek, stackable, contemporary styling, System 9 is available in handheld, headworn, guitar, lavalier and body-pack configurations. The system offers four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz).

Each System 9 configuration includes the ATW-R900 receiver and either a body-pack transmitter or handheld microphone/transmitter. The ATW-R900 is a non-diversity, single-channel receiver with advanced dipole antenna design for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900 also offers volume control along with AF Peak, RF and Power indicator lights.

Includes

  • ATW-R900 Receiver
  • ATW-T902 Handheld dynamic Unidirectional Microphone/Transmitter
  • AT8456a Quiet-Flex stand clamp



    MPN ATW902 0 0

  • Item Number
    ATW902

    • Easy operation and clear, natural sound quality
    • 4 selectable frequency-coordinated VHF channels
    • Balanced XLR and unbalanced 1/4¡± output jacks enable use with a wide variety of audio gear
    • Reliable performance and durable construction
    • Advanced dipole antenna system for extended operating range

      OVERALL SYSTEM SPECIFICATIONS
    • Operating Frequencies: VHF highband, 169 MHz to 172 MHz
    • Modulation Mode: FM
    • Maximum Deviation: +/-10 kHz
    • Dynamic Range: >/=90 dB (A-weighted), typical
    • Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
    • Operating Range: 200' (60 m) typical
    • Open range environment with no interfering signals
    • Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
    • Battery performance may be reduced at very low temperatures
    • Frequency Response: 80 Hz to 13 kHz

      RECEIVER SPECIFICATIONS
    • Receiving System: Non-diversity, single-channel, dual antenna system
    • Image Rejection: 50 dB minimum
    • RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
    • Audio Output: Nominal Output Level
    • XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
    • 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
    • Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
    • Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
    • Net Weight: 12.0 oz (337 grams)
    • Accessory Included: Power supply

      HANDHELD TRANSMITTER SPECIFICATIONS
    • RF Power Output: 10 mW
    • Spurious Emissions: Following federal and national regulations
    • Batteries: Two 1.5V AA not included
    • Battery Life: 8 hours (alkaline)
    • Depending on battery type and use pattern
    • Dimensions: 9.91" (251.8 mm) long, 2.11" (53.5 mm) diameter
    • Net Weight: 9.2 oz (260 grams) without batteries
    • Accessory Included: AT8456a Quiet-Flex™ stand clamp
