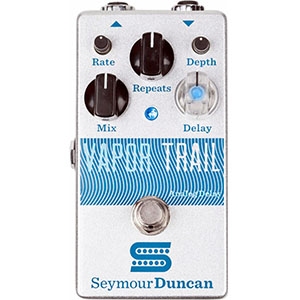

Seymour Duncan Vapor Trail Analog Delay Pedal

Analog Delay Effects Pedal

Item # 69909

Retail Price
$256.00
Sale Price!
$179.00
Buy Today and Save $77.00 (30% from Retail)

We're sorry, this product is no longer available.

Manufacturer
Seymour Duncan

The Vapor Trail is a true analog delay pedal using the famed Bucket Brigade Devices (BBDs), giving the pedal an authentic, vintage sound with warmth, fullness and depth, but with an immense clarity that keeps it from getting lost in the mix. Responsive modulation controls add shimmer and movement to your delay tone - with the Rate and Depth controls mounted right on the top panel so you can easily adjust them even in a live setting.

A TRS insert jack allows you to add effects to the wet signal (loop the wet delay sound through a flanger, chorus, or other type of effect). You can also use this jack to output a wet-only signal for parallel effect loops or multi-amp setups, or you can plug in any standard volume-type pedal, crank the Mix knob to full, and vary the amount of wet signal from none to full-wet using the pedal. At maximum Wet setting, the first echo is actually 3dB louder than the dry signal.

To round out the special features on this unit, we've made the Delay knob translucent with a cool blue LED that flashes to give you visual feedback on the delay time you have selected - especially handy when you're playing live!



0   0

MPN: 11900-002
UPC: 800315039685

  • Type of Circuitry: Analog Bucket Brigade Devices (BBDs) supported by modern low-noise analog electronics. No microprocessors or digital signal processors.
  • Bypass: True bypass
  • Delay Range: 15ms to 600ms. Actual delay time indicated by flash rate of illuminated delay time knob.
  • Dry Gain: 1dB fixed
  • Wet Gain: Adjustable from muted to +3dB. At the highest blend settings, the first echo is actually louder than the dry signal.
  • Repeat Control Range: One repeat to runaway repeats
  • Modulation Rate Range: 0.2Hz to 4 Hz
  • Modulation Depth Range: Zero to "over the top"
  • Auxiliary Functions: Wet channel insert loop, allows external effects to be applied to only the wet signal. Also serves as a wet-only output for wet/dry stereo or studio use.
  • Dry Frequency Response: <-1dB @ 10 Hz and 100 kHz
  • Dry Distortion: 0.002% at 250 Hz, 1V RMS output
  • Dry Noise Floor: -100dBv at output, 400Hz to 20kHz with input unplugged
  • Wet Noise Floor: -90dBV at output, 400Hz to 20kHz
  • Input Impedance: 1 Meg (active); open (bypassed)
  • Output Impedance: 1K ohm
  • Power: Internal 9V battery or external 9V-18V regulated power supply.
  • Current Consumption: 11mA typical
  • Dimensions: Chassis size 2.61" x 4.90" x 1.45" (W x L x H)
  • Weight: 0.8lb. without battery

    Settings
  • Slap Happy: The slap-back delay is one of the most commonly used delay effects, giving a subtle thickening to the overall sound. It adds solid punch to power chords and depth to articulate solos.
  • Run to the Edge: Need we say more. Start picking some eighth notes and hear the magic!
  • Vibro-Delay: Classic long delay with light modulation gives an atomsphereic vibrato effect.
  • Sparkle & Shine: Light, airy delay with a lush and ambient trail off.
  • Long and Liquid: Heavier amount of classic delay that hangs in the air long enough to play off of.
  • Dark Side: Classic delay and modulation warmth, reminiscent of classic tape delay sounds.
  • Rotating Speaker: Rich, modulation delay that delivers the classic rotating speaker vibe.
