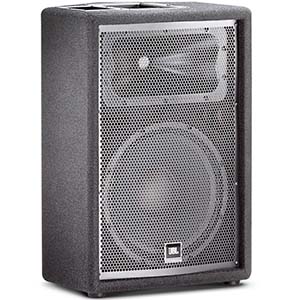

JBL JRX212

12 in. Two-Way Stage Monitor Loudspeaker System

Product Code 70102

Retail Price
$312.00
Sale Price!
$249.00
Buy Today and Save $63.00 (20% from Retail)

Add to Cart

This Item Ships FREE!
Click for Details
Click Here For Shipping Options

8thstreet Reward$
Found a Lower Price?
Call 1-800-878-8882
Click here to let us know now!

Manufacturer
JBL

The JRX212 is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.



0   0

MPN: JRX212

  • JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
  • JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
  • Non-resonant, all-steel handles are used.
  • Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
  • Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.
  • Power Rating: 250 W / 1000 W
  • Frequency Range (-10 dB): 60 Hz - 20 kHz
  • Frequency Response (±3 dB): 80 Hz - 18 kHz
  • Sensitivity (@1m): 98 dB SPL (1w/1m)
  • Nominal Impedance: 8 ohms
  • Recommended Amplifier Power: 250 W to 500 W into 8 ohms
  • Maximum SPL: 128 dB
  • Nominal Dispersion: 90º x 50º
  • Crossover Frequency: 2.1 kHz
  • Dimensions: (H x W x D): 584 mm x 399 mm x 325 mm
    (23 in x 15.7 in x 12.8 in)
  • Weight: 19.5 kg (43 lb)
  • High Frequency Driver: JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™
  • Waveguide
  • Low Frequency Driver: JBL M112-8
  • Input Connectors: Neutrik® Speakon® NL-4 (x1); .25 in
    TS phone jack (x1); parallel
