C-Console 01V is the ultimate in PC-based control for the Yamaha 01V, the ideal bridge between hardware and software, and the key to unlocking the full professional power within the 01V. From data management to rock-solid automated mixing, it’s an indispensible addition to any stage or studio where the 01V is used.

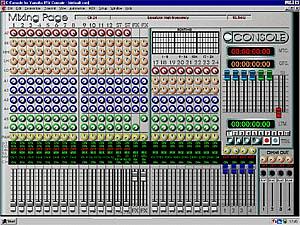

C-Console is a virtual mixing surface designed to provide full access to virtually every 01V feature and option on a Windows PC. It provides real-time or near-real-time access to virtually every mixing parameter in the 01V as well as a full set of tools for automating and syncing mixes, saving and loading mixer map presets and automated mixes, and working with the 01V’s internal signal processors.

One of the most underappreciated aspects of this mixer, especially when combined with C-Console, is its ability to integrate seamlessly with other audio hardware. Add a DSP Factory card to an existing 01V setup with digital I/O and you essentially double the power and flexibility of your hardware for the fraction of the cost of any comparable stand-alone solution. The near-perfect parameter-for-parameter compatibility of the two devices insures almost zero adjustment time for adding new power to your existing hardware setup.

C-Console is also the premier solution for engineers using the 01V as the centerpiece of a DAW. Even Dolby Pro Logic™ Surround Sound™ compatible mixing is supported through an internal 2.2 format editor; 5.1 and 6.1 formats are supported through an inexpensive C-Face™ extension to C-Console.

Add it all up, and the combination of C-Console 01V and the Yamaha 01V offers one of the lowest-cost, highest-quality solutions for truly productive professional desktop audio available today.

Full support of virtually every documented 01V feature, including
- patchbays, buses and routing options including omni outs
- effects, EQ and dynamics
- remote MIDI control and automation

Full support for 01V option cards
- digital or expanded-analog I/O support built in
- option card routings available for all relevant dialogs

Near-complete access to all available 01V parameters on a single screen
- display every channel parameter or primary mix control on a single display
- multiple-monitor compatible; vastly increased efficiency and visibility in dual or triple monitor configurations

Simple design backed with thorough documentation insures exceptionally low adjustment time
- two complete manuals, one for C-Console and 01V operation, and another offering a complete guide to the effects, EQs and dynamics
- all audio-related dialogs look and feel like actual hardware controls
- up to five different ways to accomplish the same task; C-Console can adjust to your preferred workstyle

Dolby Pro Logic™ Surround Sound™ support
- joystick control, field position oscillator and more
- supports 2.2 Surround Sound™ capability out-of-the-box
- optional extended support for 5.1 and 6.1 Surround Sound™ formats using the DS2416 C-Face™ Surround Sound extension

Dynamic, latency-free automation of 01V mixer functions, including:
- on-demand control over auxes and bus masters
- real-time control over dynamics parameters
- full access to all effect parameters and real-time parameter control
- digital attenuators
- full access to sophisticated channel delay and phase inversion capabilities

Compatible with virtually every popular Windows- or hardware-based recording or audio workstation configuration

All the features, extras and support that come standard with every C-Console product

Minimum Requirements


Recommended Requirements



IBM PC, MMX P-133 level CPU or newer
200MHz CPU recommended; 266MHz CPU recommended for configurations with two 01Vs
Windows 95 or Windows NT 4.0
Windows 98 (multiple monitor support in Win98 dramatically enhances efficiency when used with C-Console)
32MB system RAM
128MB system RAM minimum for hard disk recording on the same PC as C-Console; 256MB recommended.
10MB free disk space
A dedicated partition, or preferably a dedicated hard disk rated at 7200rpm or higher, used solely for audio/MIDI applications. Performance often increases substantially when booting from a Win95 or Win98 partition dedicated solely to audio/MIDI use.
Monitor capable of 1024x768 display resolution and HiColor (16K or 32K colors) or TrueColor (24M colors) display depth; 4MB PCI or AGP graphics adapter
17" monitor for comfortable 1024x768 viewing on a single monitor. Multiple monitors under Win98 or newer are highly recommended over a larger monitor at a higher resolution.
