Store Demo Mint Condition with Full warranty

ULTRA HIGH POWER
ONE-PIECE PA SYSTEM/POWERED MONITOR

Galaxy Audio’s CORE Series X amplifiers are the product of rigorous engineering and the latest advances in technology. The Class H power supply configuration utilizes four output transistors, a low voltage pair and a high voltage pair. Its low voltage transistors are active with any signal. When demand on the amp exceeds the low voltage transistors’ capabilities, the high voltage transistors kick in and provide additional power. The result is an amplifier that runs cooler, weighs less, is smaller and more efficient. Built-in compressor/limiter circuitry controls the amplifier’s gain, acting like a compressor on transient signals and a “brick wall” limiter on signals that continuously exceed a predetermined limit. The result is an apparent 6 dB increase in SPL without distortion. That’s twice the sound pressure. SmartALIC gain management adjusts the amplifier’s gain for differences between line level and mic signals, maximizing the signal-to-noise ratio of virtually any input source.

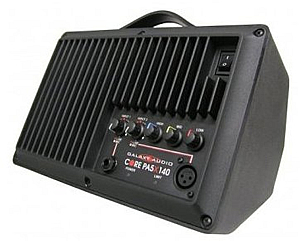

Never before has so much power been packed into a complete sound system that’s smaller than a shoe box and weighs only 13 pounds. The CORE PA5X140 produces a ground shaking 146 watts (at 4 ohms), enough to power its internal speaker and two Galaxy Audio HOT SPOT Personal Monitors. Its 114 dB maximum sound pressure level is louder than most systems many times its size.

It features balanced 1/4-inch and XLR inputs with individual volume controls, a three band equalizer, and one of Galaxy’s legendary ferro fluid cooled five-inch drivers with a 40-ounce magnet structure. A frequency response of 200 Hz to 18 kHz and 98 dB (1 watt/1 meter) sensitivity ensures incredible intelligibility and superior gain before feedback and can cut through the most extreme ambient noise levels.

The PA5X140’s cabinet is constructed of black, fire-retardant styrene with a black cast aluminum faceplate/grille.

Utilizing its integral microphone stand mount, and positioned in close proximity to the performer, it’s louder, more direct, and less likely to cause feedback than a conventional floor monitor. And as a one-piece PA system nothing else its size and weight can approach the PA5X140’s power and volume.

When plugged into Galaxy Audio’s FAR OUTLETTM personal power source the PA5X140 is fully portable. It even comes with a handle. The CORE PA5X140 is made in the U.S.A..

MPN: PA5X140
UPC: 69128125140

AMPLIFIER SECTION
Rated Power: 146 watts @ 4 ohms, 100 watts @ 8 ohms
Equalization: Three band center detent
Lo: ± 12 dB shelving at 300 Hz
Mid: ± 12 dB peak/dip at 2 kHz
Hi: ± 12 dB peak/dip at 10 kHz
Frequency response: 200 Hz–20 kHz
Signal-to-Noise Ratio: >95 dB
Total Harmonic Distortion:
<0.05% @ 4 ohms, <0.1% @ 8 ohms
Minimum Recommended Load Impedance: 4 ohms
Input Sensitivity for 8 ohm power: 1 VRMS
IHF Damping Factor: >380
Input connections (each with individual volume control):
One balanced 1/4"
One balanced XLR with +24 VDC phantom power
Output connections:
One 1/4-inch speaker level for minimum 8 ohm load.
One (post-EQ, post-level) RCA line out
Indicator LEDs: POWER, COMPRESSOR-LIMITER
Power Requirements: 110–125 VAC, 60 Hz, 2 A; 210–295 VAC, 50/60 Hz
Safeguards:
Short circuit current limiting
Short circuit foldback limiting
Thermal short circuit protection
Dynamic load line cooling
Turn on/turn off transient suppression


SPEAKER SECTION
Speaker: One Galaxy Audio S5C160-8 ferro fluid cooled 5” driver with 40 oz. (1.1kg) magnet structure
Nominal impedance: 8 ohms
Power handling capacity: 100 watts @ 8 ohms
Sensitivity (I Watt @ 1 meter): 98 dB (1 kHz octave band)
Frequency response: 200 Hz–18 kHz
Maximum SPL @ clip (100 Watts @ 1 meter): 114 dB
SPLOWT: 9.12
Enclosure Materials: Fire retardant styrene
Color: Black case with black cast aluminum grille
Dimensions: 6.75" x 10.94" x 6" (171 mm x 278 mm x 152 mm)
Net weight: 12.5 lbs. (5.7 kg)
Shipping weight: 13.5 lbs. (6.1 kg)

Specifications subject to change without notice.

Includes SA-1
