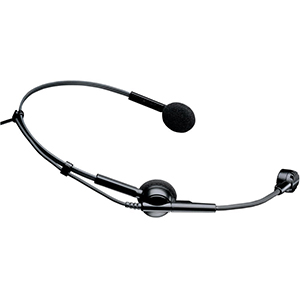

Audio Technica

Professional-quality vocal pickup with hands-free operation
Low-visibility headband provides stable, comfortable fit
Pivot-mounted flexible mic boom descends from left or right side
Belt-mounted power module operates on battery or phantom power
55" (1.4 m) cable permanently attached between microphone and power module
Also available as:
ATM75c -- less power module; 7.2' (2.2 m) cable, unterminated
ATM75cW -- less power module; 55" (1.4 m) cable terminated for A-T wireless systems

1   1

UPC: 042005309382

Element Phantom Power Requirements
9 - 52V, 2 mA typical

Polar Pattern

Frequency Response
60 - 15,000 Hz

Open Circuit Sensitivity
PHANTOM -51 dB (2.8 mV) re 1V at 1 Pa
BATTERY -53 dB (2.2 mV) re 1V at 1 Pa

PHANTOM 200 ohms
BATTERY 270 ohms

Maximum Input Sound Level
PHANTOM 132 dB SPL, 1 kHz at 1% T.H.D.
BATTERY 121 dB SPL, 1 kHz at 1% T.H.D.

Signal To Noise Ratio
58 dB, 1 kHz at 1 Pa

Dynamic Range (Typical)
PHANTOM 96 dB, 1 kHz at Max. SPL
BATTERY 85 dB, 1 kHz at Max. SPL

Battery Type
1.5V AA/UM3

Battery Current/Life
0.4 mA/2000 hours typical


Low-frequency Roll-off
80 Hz, 18 dB per octave

2.1 oz (60 g)

Power Module

Output Connector
XLRM-type (power module)

Accessories Furnished: AT8139L large windscreen; AT8139S small windscreen; AT8439 clothing clip; AT8530 power module (attached); battery
