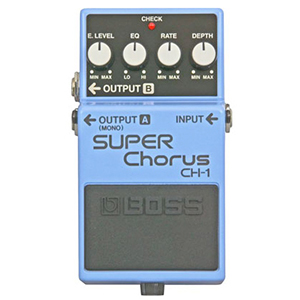

A UNIQUE STEREO CHORUS
The CH-1 Super Chorus pedal delivers a clean classic chorus sound with crystal-clear highs and a unique stereo effect, variable between left and right speakers.

MPN: CH-1
UPC: 761294015193

• Classic BOSS chorus pedal with clean, brilliant sound for guitar and keyboards

• Effect Level, EQ, Rate and Depth knobs allow for precise shaping of sound

• Features Mono input and Stereo outputs for connection to dual amps

• BOSS five-year warranty

• Nominal Input Level-20 dBuInput Impedance1 M ohmNominal
• Output Level-20 dBuOutput Impedance1 k ohm

• Recommended Load Impedance 10 k ohms or greater

• Bypass Buffered bypass

• Controls

• DEPTH knob

• RATE knob

• EQ knob

• E.LEVEL knob

• Pedal switch

• Indicator CHECK indicator (Used for indication of check battery)

• Connectors

• INPUT jack: 1/4-inch phone type

• OUTPUT A/B jack: 1/4-inch phone type

• DC IN jack

• Power Supply Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)

• AC adaptor (PSA series: sold separately)

• Current Draw 25 mA

• Expected battery life under continuous use

• Carbon: Approx. 11.5 hours

• Alkaline: Approx. 26.0 hours
  *These figures will vary depending on the actual conditions of use.

• Accessories Owner's manual

• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

• Carbon-zinc battery (9 V, 6F22)

• Options (sold separately)

• AC adaptor: PSA series

  SIZE AND WEIGHT

• Width: 73 mm, 2-7/8 inches

• Depth: 129 mm, 5-1/8 inches

• Height: 59 mm, 2-3/8 inches

• Weight (including battery): 400 g, 15 oz
