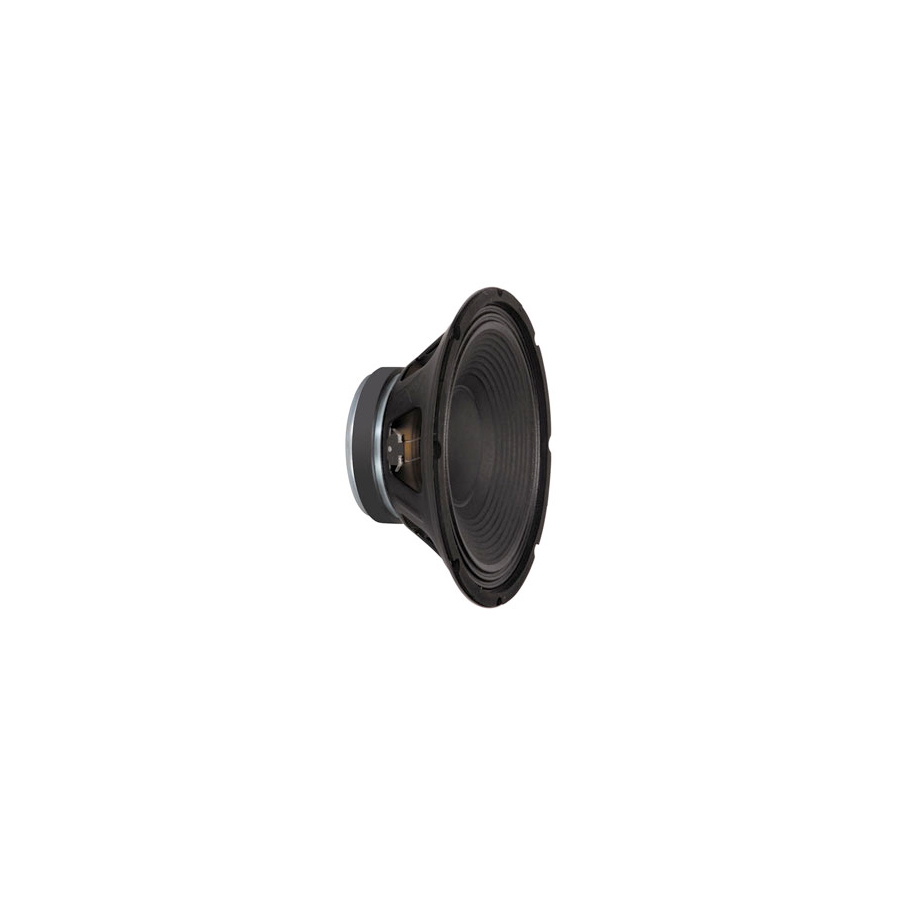

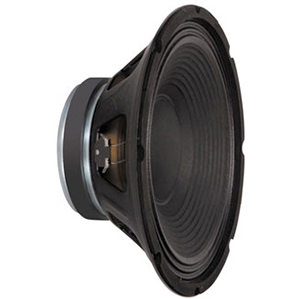

Peavey Sheffield PRO 1200+ 12 Inch 8 Ohm Low Frequency Driver.

MPN: 00577900
UPC: 014367112351

• 12" Driver

• Impedance: 8 Ohms

• Power capacity: 1000 W Peak 500 W Program 250 W Continuous

• Sensitivity: 96.3 dB / 1 W 1 m

• Usable freq. range: 50 Hz ~ 4 kHz

• Cone: Impregnated cellulose

• Voice coil diameter: 2.5" / 63.5 mm

• Voice coil material: 2 layers, thermally bonded copper wire Kapton former Nomex® stiffener

• Net weight lb. / kg: 11 lbs. / 5.0 kg

• Znom (ohms) 8

• Revc (ohms) 5.21

• Sd (Square Meters) 0.0523

• BL (T/M) 13.89

• Fo (Hz) 53.2

• Vas (liters) 70

• Cms (uM/N) 179.2

• Mms (gm) 49.96

• Qms 6.748

• Qes 0.451

• Qts 0.423

• Xmax (mm) 3.6

• Le (mH) 0.33

• SPL (1W 1m) 96.3

• No (%) 2.25%

• Vd (cu. in. / ml) 365

• Pmax (Watts pgm.) 400

• Disp (cu. in. / ml) 121 / 1983
