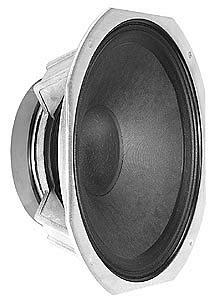

Peavey Scorpion S-12825

12 Inch 8 Ohm Low Frequency Driver

Product Code 20295

Retail Price
$109.99
Sale Price!
$89.99
Buy Today and Save $20.00 (18% from Retail)

We're sorry, this product is no longer available.

8thstreet Reward$
Found a Lower Price?
Call 1-800-878-8882
Click here to let us know now!

Manufacturer
Peavey

Peavey Scorpion S-12825 12 Inch 8 Ohm Low Frequency Driver.



0   0

MPN: 00013750
UPC: 014367000283

  • 12" Driver
  • Impedance: 8 Ohms
  • Power capacity: 800 W Peak 400 W Program 200 W Continuous
  • Sensitivity: 94.9 dB / 1 W 1 m
  • Usable freq. range: 60 Hz ~ 4 kHz
  • Cone: Kevlar┬« impregnated cellulose
  • Voice coil diameter: 2.5" / 63.5 mm
  • Voice coil material: Aluminum ribbon wire Kapton former Nomex┬« stiffener Solderless diffusion welded OFHC copper leads
  • Net weight lb. / kg: 7.8 lbs. / 3.54 kg
  • Znom (ohms) 8
  • Revc (ohms) 5.34
  • Sd (Square Meters) 0.050
  • BL (T/M) 10.51
  • Fo (Hz) 59.4
  • Vas (liters) 66.6
  • Cms (uM/N) 187.2
  • Mms (gm) 38.3
  • Qms 5.246
  • Qes 0.691
  • Qts 0.611
  • Xmax (mm) 0.06
  • Le (mH) 0.30
  • SPL (1W 1m) 94.9
  • No (%) 1.96%
  • Vd (cu. in. / ml) 1.8 / 30
  • Pmax (Watts pgm.) 400
  • Disp (cu. in. / ml) 126 / 2064
