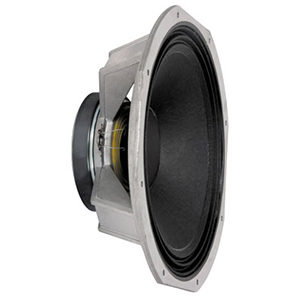

Peavey Scorpion SP-15825 15 Inch 8 Ohm Low Frequency Driver.
Shown in silver - Now Black!

MPN: 00015020
UPC: 014367000290

• 15" Speaker

• Impedance: 8 Ohms

• Power capacity: 800 W Peak 400 W Program 200 W Continuous

• Sensitivity: 98.7 dB / 1 W 1 m

• Usable freq. range: 40 Hz ~ 2 kHz

• Cone: Kevlar® impregnated cellulose

• Voice coil diameter: 2.5" / 64 mm

• Voice coil material: Aluminum ribbon wire Kapton former Nomex® stiffener Solderless diffusion welded OFHC copper leads

• Net weight lb. / kg: 12.75 lbs. / 5.8 kg

• Znom (ohms) 8

• Revc (ohms) 5.54

• Sd (Square Meters) 0.084

• BL (T/M) 17.1

• Fo (Hz) 50.1

• Vas (liters) 132.4

• Cms (uM/N) 174.5

• Mms (gm) 70.3

• Qms 6.050

• Qes 0.345

• Qts 0.326

• Xmax (mm) 3.1

• Le (mH) 0.34

• SPL (1W 1m) 98.7

• No (%) 4.70%

• Vd (cu. in. / ml) 13.9 / 227

• Pmax (Watts pgm.) 400

• Disp (cu. in. / ml) 201/ 3294
