Eminence is proud to present the Patriot and Redcoat series of guitar speakers. Incorporating both British and American cone technology into speakers that are manufactured in the USA gives Eminence speakers the ability to provide you with virtually any tone you desire. Be it British or American, clean or dirty, big bass or screaming highs, we have a speaker that will allow you to "Pick Your Sound".

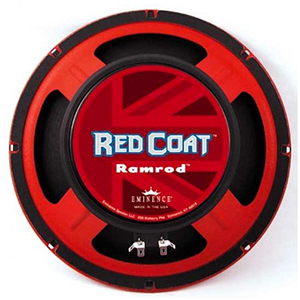

Ramrod: Very loud, gutsy, and meaty tone with singing highs and nice, clear overtones.

MPN: RAMROD
UPC: 876358001132

Impedance: 8
Power Rating**: 75W RMS
Voice Coil Diameter: 1.5 in., 38.1mm
Coil Material: Copper
Flat/Round Coil Wire: Round
Coil Former Material: Kapton
Basket Type: Stamped
Cone Surround Material: Paper
Dust Cap Material: Zurette
Magnet Weight: 30 oz.
Usable Bandwidth (Fs to -3dB): 70Hz - 5kHz
SPL*: 100dB


Mounting Information

Nominal Basket Diameter: 10.11 in. (256.8 mm)
Baffle Hole Diameter: 9.125 in. (231.8 mm)
Mounting Holes Diameter: 0.225 in. (5.7 mm)
Mounting Holes B.C.D.: 9.5 in. (243.8 mm)
Depth: 4.3 in. (109.2 mm)
Shipping Weight: 9 lbs. (4.1 kg.)
