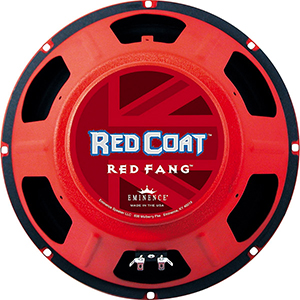

Eminence Red Coat Series Red Fang 12 Inch 16 Ohms

50 Watt 16 Ohms Replacement Speaker

Product Code 30283

Retail Price
$199.99
Sale Price!
$189.99
Buy Today and Save $10.00 (5% from Retail)

Add to Cart

This Item Ships FREE!
Click for Details
Click Here For Shipping Options

Manufacturer
Eminence

The Eminence Red Fang 12 inch guitar speaker defines the British Invasion. Vintage tone with warm undertones and high-end sparkle. You'll swear they're coming again.



0   0

MPN: RED FANG-16
UPC: 876358001200

  • Nominal Basket Diameter: 12", 305 mm
  • Nominal Impedance*: 8 Ω
  • Power Rating*
  • Program Power: N/A
  • Watts: 50 W
  • Resonance: 97 Hz
  • Usable Frequency Range: 80 Hz - 5.2 kHz
  • Sensitivity*: 102.5 dB
  • Magnet Weight 35 oz.
  • Gap Height: 0.31", 7.9 mm
  • Voice Coil Diameter 1.75", 44 mm
  • THIELE & SMALL PARAMETERS
  • Resonant Frequency (fs) 97 Hz
  • DC Resistance (Re) 5.72 Ω
  • Coil Inductance (Le) 0.39m H
  • Mechanical Q (Qms): 13.39
  • Electromagnetic Q (Qes): 0.74
  • Total Q (Qts): 0.7
  • Compliance Equivalent Volume (Vas): 39.4 liters / 1.39 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd): 24.9 cc
  • Mechanical Compliance of Suspension (Cms): 0.1 mm/N
  • BL Product (BL): 11.1 T-M
  • Diaphragm Mass Inc. Airload (MMs): 26 grams
  • Efficiency Bandwidth Product (EBP): 131
  • Maximum Linear Excursion (Xmax) 0.48 mm
  • Surface Area of Cone (Sd): 519.5 cm2
  • Maximum Mechanical Limit (Xlim): N/A

    MOUNTING INFORMATION
  • Recommended Enclosure Volume
  • Sealed: Acceptable
  • Vented: Acceptable
  • Driver Volume Displaced 0.079 cu.ft. / 2.24 liters
  • Overall Diameter: 12.03", 305.6 mm
  • Baffle Hole Diameter: 11.07", 281.2 mm
  • Front Sealing Gasket: Yes
  • Rear Sealing Gasket: Yes
  • Mounting Holes Diameter: 0.25", 6.4mm
  • Mounting Holes B.C.D.: 11.59", 294.4mm
  • Depth: 6.2", 157.5 mm
  • Net Weight: 8.8 lbs, 3.99 kg
  • Shipping Weight: 10.6 lbs, 4.81 kgs

    MATERIALS OF CONSTRUCTION
  • Coil Construction: Copper voice coil
  • Coil Former: Nomex former
  • Magnet Composition: Alnico magnet
  • Core Details: Non-vented core

  • Basket Materials: Pressed steel basket
  • Cone Composition: Paper cone
  • Cone Edge Composition: Paper cone edge
  • Dust Cap Composition: Zurette dust cap
