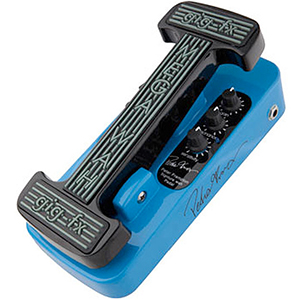

Peter Frampton, the Grammy Award winning guitar legend and rock icon, has endorsed a gig-fx MegaWah specially tailored to his specifications. Peter has long been a fan of gig-fx pedals and has the MegaWah and ProChop pedals as permanent fixtures on his pedal board. The new Signature pedal features the established MegaWah sound with a slightly warmer high end and more defined lower end response in a mono format.

Peter says: "My Signature MegaWah is a very special pedal. It has a unique sound with a warmth I can't get with anything else. It out-performs any Wah out there with it's exceptional tone and different modes. I love it – it's on my pedal board already!"

The all-analog Peter Frampton MegaWah has four onboard settings via a four-position selector switch:

• A Classic Wah with the same sweep characteristics and tones as vintage Wah pedals.

• Peter Frampton Signature Mega setting with the extended filter range and full low-end response and warm high-end.

• The funkiest, most melodic and talkative automatic Envelope Wah on the planet.

• An Auto-wah with a variable rate control.

• Four position selector switch to select any of the effects above.

• An overall effect gain (volume) to enable louder soloing as required.

• A resonance control to control the ‘Q' (peak signal amplification). This controls the amount of wah from a subtle quack to a massive wail. Up to 15dB of peak amplification is available ensuring the most expressive and powerful Wah sound out there.

• Envelope sensitivity control; the automatic envelope Wah is triggered by your picking attack style (note velocity). You can vary the sensitivity so that the envelope can talk or quack according to your preference.

• An Autowah rate control to provide variable Autowah tempos.

MPN GFX-PF1 0 0

Item Number
GFX-PF1

• All analog circuitry.

• Easy to use. Patented ergonomic design with the control knobs facing you. The unique pedal shape allows more controls in a smaller footprint.

• All analog, clean and clear wide dynamic range achieved by doubling the operating voltage internally to provide more signal headroom.

• Reliable, wear-free, noise-free optical operation. Bypassed when the pedal is all the way back (heel down).

• 9V operating voltage, 30mA current consumption (we recommend using an AC adapter).

• Will accept standard 2.1mm 9VAC adapter supply plug, center negative. Adapter jack has protection diode to protect the pedal from an incorrect polarity should it occur.

• Bright blue LED to show effect is on and flashing red LED to show Auto-wah modulation rate.

• Compact Size: 9" x 4" (228mm x 103mm).

• Lightweight, high-quality aircraft aluminum casting and rugged construction, only 2.3lbs (1.1kg).

• CE, RoHS, FCC compliant.
