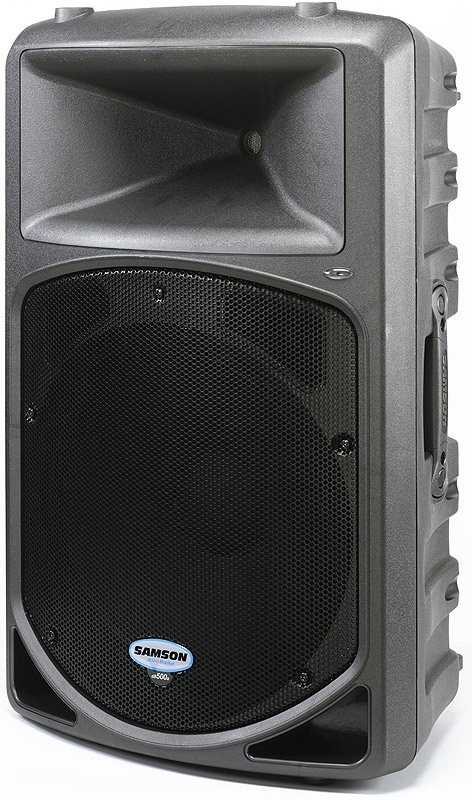

2-dB500a’s, One sealed One open (Mint)

Inside Samson’s rigid custom designed cabinet is a 15" driver designed exclusively for this project. It’s matched with a new 1.75" Neodymium high frequency driver, aimed through a 1" diameter horn. The dB500a features 500 watts of Class H power (400 watts low frequency/100 watts high frequency) and has a crossover designed for high SPL. Our exclusive Optimax(TM) signal processing circuitry provides total speaker protection but won’t cut the low end at high volumes, as similar speakers with sliding filters do.

MPN: SADB500A
UPC: 809164003045

- 15" heavy-duty bass transducer with 50-ounce barium ferrite magnet
- 1.75" high frequency titanium compression tweeter
- Power rating: low frequency 400 watts RMS; high frequency 100 watts RMS
- Balanced XLR microphone input; balanced Combo XLR/Line input
- Balanced XLR extension outputs
- Mic and line level rotary controls; low and high EQ rotary center detent controls, }12dB @100Hz and 10kHz
- Low filter switch, high pass (low-cut) 12dB per octave at 80Hz
- Push switch selects Mix or Thru for line output
- Optimax multi-band dynamics - In/Out
- Frequency response: 60Hz-24kHz }3 dB
- Stand Mounting: integral 1 3/8" Pole Mount Receptacle
- 10 fly points for hanging mount
- Large gender mated stacking bumpers
- 61 lbs., 30" (h) x 19" (w) x 18" (d)
