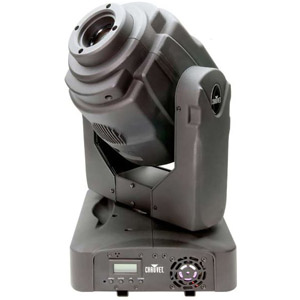

The Q-Spot™ 260-LED is a high power moving yoke equipped with a 60-watt white LED. It includes a color wheel with eight slots plus white and two gobo wheels, one with seven rotating slot-n-lock gobos plus open and the other with nine fixed gobos plus open. The easy-access hatch provides for tool-free gobo changes. It also includes remote focus and a rotating prism.

MPN: QSpot260LED

• DMX channels: DMX channels: 11 or 14

• Pan: 540°

• Tilt: 270°

• Colors Wheel: 8, continuous scroll at variable speeds

• Gobo wheel (static): 9, interchangeable, continuous scroll at variable speeds

• Gobo wheel (rotating): 7 (5 metal + 2 glass), interchangeable, slot-n-lock, continuous scroll at variable

• 3-facet rotating prism

• Variable electronic dimmer (0 ~ 100%)

• Remote fixture reset

• Move-in-black for pan/tilt

• Built-in automated programs

• Built-in sound activated programs

• 255 user-programmable steps without DMX controller

• High-powered, 60 W LED

• User-selectable pan/tilt ranges

• Automatic pan/tilt correction

• Reset to factory settings option

• User-selectable basic or advanced operating modes

• Easy access door for gobo change

• DMX connectors: 3-pin

• Pan & tilt: 540° / 270°

• Gobo size: 26mm outside, 19mm image, 2.2mm max thickness

• Source: 60 W LED, 50,000 hours

• Configuration: 1 white (12.6 A)

• Beam angle: 15°

• Lux: 750 @ 5 m

• AC Voltage Range: 100~240 V, 50/60 Hz (auto-ranging)

• Power Consumption 120 V, 60 Hz: 153 W, 1.3 A (operating)

• Power Consumption 230 V, 50 Hz: 138 W, 0.6 A (operating)

• Dimensions: 11.4 x 10.9 x 19.1 in (292 x 278 x 485 mm)

• Weight: 30 lbs (13.6 kg)

• Gobo Size: 25.8 mm outside, 18.2 mm image, 1.2 mm max thickness

• Power Connection: IEC

• Control Connection: 3-pin DMX

• Certification: CE, ETLc

• Environment: IP20, dry location
