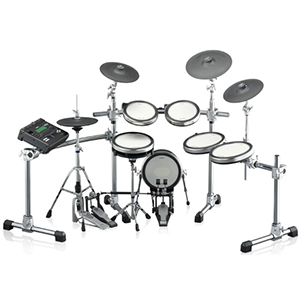

Yamaha combined their expertise in acoustic drums with our latest digital sound technology to create the new Yamaha DTX900 Series Electronic Drum System. Yamaha designed its innovative new DTX-PAD featuring a Textured Cellular Silicone (TCS) head with input from the company's legendary stable of drum artists. Utilizing sound technology from the highly acclaimed Motif XS and DSP effects from our high-end digital mixers, the DTX950K Drum Trigger Module has professional sounds that bring your drumming to life. The DTX900 Series lets you express yourself without thinking about the fact you are playing electronic drums, but it has all the advantages of a completely digital system.

For quiet practice, playing live or as a controller for VST instruments, the revolutionary new T.C.S. head's playability and feel combined with Yamaha's acclaimed digital sound technology, make the Yamaha DXT900 Series Electronic Drums the one to beat.

MPN: DTX950K

Configuration

• 12" XP120S Snare Pad

• Two 10" XP100T and two 12" XP120T Floor Tom Pads

• Featuring the expandable HEXRACK System

• Matte Chrome finished hoops for strength and looks

• Shock-absorbing mounting system

• Updated Kick Pad with reinforced head

• 1,115 drum and percussion, 211 MOTIF GM melody voices

• Onboard sampler with dedicated effects (with optional DIMM)

• USB connectivity

• Realistic feeling hi-hat pad with HS740A stand

  Sampling

• Samples: 1,016 (for the User Voices)

• Sampling Source: Audio input signals via AUX
• IN/SAMPLING IN, Audio output signals via OUTPUT (Resample)

• Sample Data Bits: 16bit

• Sampling Memory: Optionally installed, expandable to 512 MB (256 MB DIMM x 2 slots) * DIMMs are not installed to the instrument when shipped from the factory.

• Sample Length: Mono: 32MB Stereo: 64MB

• Sampling Time: 44.1kHz: 6 min. 20 sec. 22.05kHz: 12 min. 40 sec. 11.025kHz: 25 min. 20 sec. 5.5125kHz: 55 min. 40 sec. *Mono/Stereo

• Digital Sampling Frequency: 44.1kHz, 22.05 kHz, 11.025 kHz, 5.5125 kHz (stereo/mono)

• Sampling Format: DTX900 Original format, WAV, AIFF

  Tone generator

• Tone Generator: AWM2

• Maximum Polyphony: 64 notes

• Wave: 205MB (when converted to 16-bit linear format)

• Voices: Preset: 1,115 drum voices, 211 melody voices (GM)

• Effects: Reverb 9 types Chorus 19 types Variation 51 types (Drum Kit) Insertion 51 types (AUX IN/SAMPLING IN)
• Master Effect 9 types Master EQ 5 bands

• Drum kits: Preset: 50 kits User: 50 kits (in the Flash ROM) External: 1584 kits (or 99 x 16, in the external USB storage device)

  Trigger

• Trigger Setup: Preset: 9 User: 5

• Pad songs: play, chase, cutoff 4 songs (max.) can be played simultaneously.

  Sequencer

• Note Capacity: Approx. 152,000 notes

• Note Resolution: 480 ppq (parts per quarter note)

• Song recording type: Real time

• Song tracks: 2 tracks

• Songs: Demo: 3 songs Practice: 44 songs Pad song: 40 songs User: 50 songs

• Sequence formats: DTX900 Original Format, SMF format 0

  Click

• Tempo: 30 – 300 , Tap tempo

• Beat: 1/4 – 16/4, 1/8 – 16/8, 1/16 – 16/16

• Timing: Accent, Quarter note, Eighth note, Sixteenth note, Triplet

• Click Voices: Preset: 8 User: 1

• Training Functions: Measure break, Groove check, Rhythm gate

  Other

• Controllers: - Sliders MASTER, PHONES, CLICK, ACCOMP., KICK, SNARE, TOM, CYMBAL, HI-HAT, MISC. - Data dial

• Display: 240 x 64 dot graphic backlit LCD, 7-segment LED (3-digit)

• Connectors: - MIDI IN/OUT - USB TO DEVICE/TO HOST - OUTPUT L/MONO, R (standard phone jack) - DIGITAL OUT (EIAJ CP1201, IEC60958, S/P DIF) - INDIVIDUAL OUTPUT 1 – 6 (standard phone jack) - Trigger Input jacks 1 – 9, 12 – 15 (Standard stereo phone jack, L: Trigger Signal, R: Rim
• Switch) - Trigger Input jacks 10 and 11 (Standard stereo phone jack, L: Trigger Signal, R: Trigger Signal) - AUX IN/SAMPLING IN (Standard stereo phone jack) - PHONES (Standard stereo phone jack) - HI-HAT CONTROL (Standard stereo phone jack) - DC IN 16V

• Power Consumption: 18W
