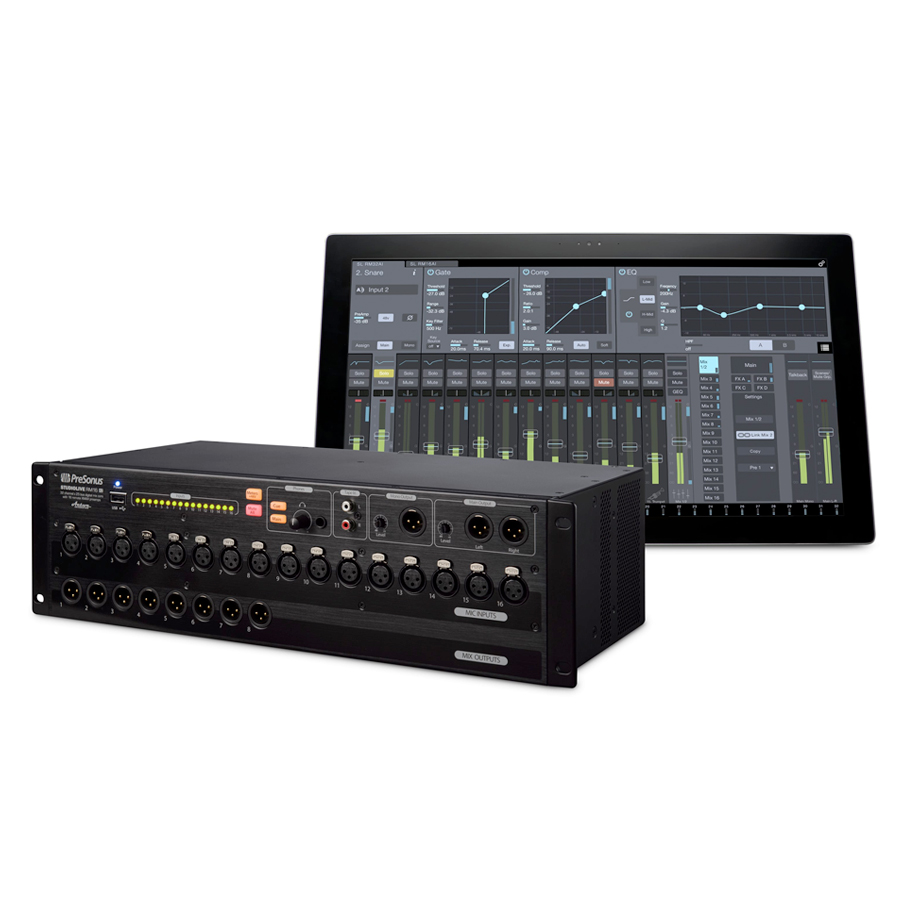

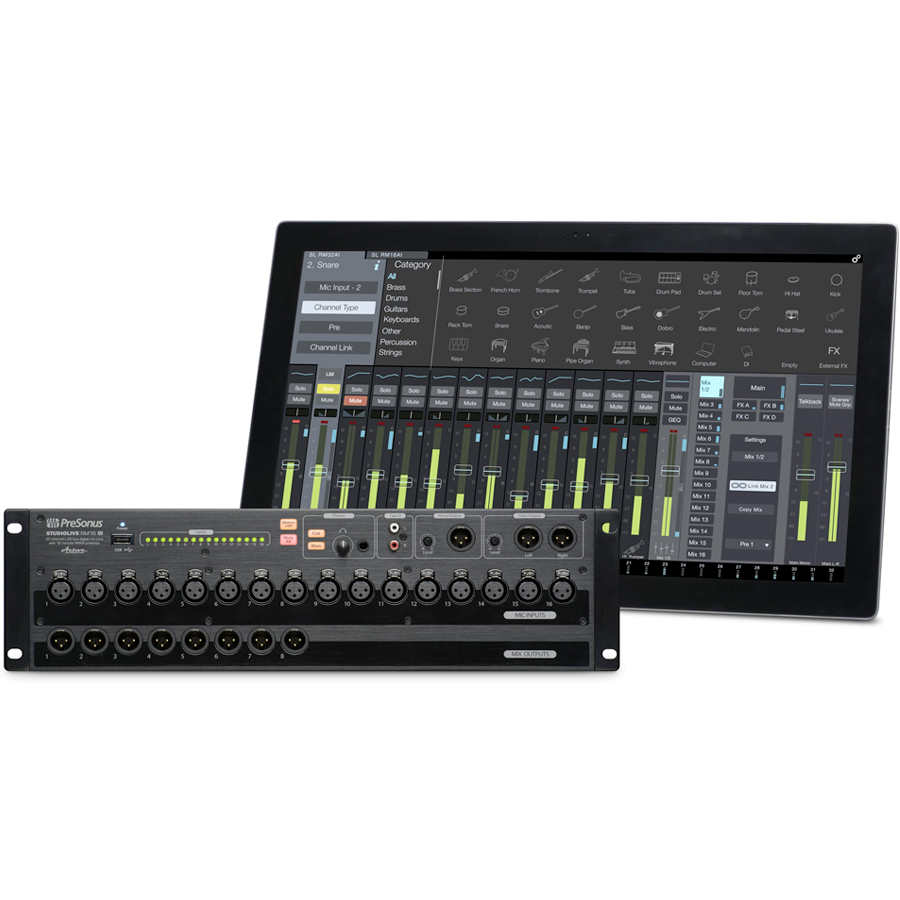

Based on the StudioLiveTM AI-series engine and controlled with powerful, battle-ready UC-Surface touch software for Mac®, Windows®, and iOS®, the StudioLive RM16AI rack-mount digital mixer is scalable and compact. It provides 16 inputs with recallable XMAXTM Class A preamps, 8 line outs, and 3 main outs (left, right, and mono/center); 32 internal channels and 25 buses; a 52x34 FireWire 800 recording interface; 96 kHz operation; and extensive signal processing. Designed for live-sound mixing and studio recording, the RM16AI's Active IntegrationTM technology includes direct Wi-Fi and Ethernet networking and tightly integrated CaptureTM recording software with true Virtual Soundcheck mode, Studio One® Artist DAW for Mac and Windows, and a Nimbit® account for online music promotion and distribution.

Scalable, fully recallable, and designed for live-sound mixing and studio recording, the StudioLiveTM RM16AI rack-mount digital mixer introduces the all new, battle-ready UC- SurfaceTM touch control software for Mac®, Windows®, and iOS®. With 16 recallable XMAXTM Class A preamps, a 52x34 FireWire 800 recording interface, 96 kHz operation, and extensive Fat Channel signal processing, the RM16AI is in a class of its own. Active IntegrationTM technology provides direct Wi-Fi and Ethernet networking with a tightly integrated software suite, including CaptureTM recording and virtual sound check software and Studio One® Artist DAW for Mac and Windows to deliver a complete solution.

MPN: SLRM16
UPC: 673454003073

• Fully recallable mixer

• 16 locking XLR inputs with recallable XMAXTM Class A mic preamps and +48V
  phantom power

• 8 XLR line outputs on the front, mirrored on rear-panel DB25 jack

• 3 XLR main outputs (left, right, mono) with analog trim pots

• 16 LED meter grid

• 32 internal channels

• 25 mix buses

• 16 aux mix buses

• 3 main mix buses (left, right, mono)

• 4 internal FX buses (2 reverb, 2 delay) o Stereosolobus

• Fat Channel signal processing on all input channels and all buses, with 4-band parametric EQ, compressor, gate, limiter, and more

• 52x34 direct digital FireWire recording interface

• UC-SurfaceTM battle-ready, live mixing and control software

• Designed specifically for live sound mixing

• Multiplatform support for Mac®, Windows®, and iPad®

• Windows 8 multi-touch-compatible for large touchscreen mixing
  o Contextual-based navigation for quick, intuitive access to all mixing functions

• Compatible with free QMixTM-AI personal monitoring control app for iPhone®/iPod® touch

• Complete solution: Includes CaptureTM live-recording software and Studio One® Artist DAW for Mac and Windows, and Nimbit® account for online music promotion and distribution.

• USB jack and included Wi-Fi LAN adapter provides wireless control

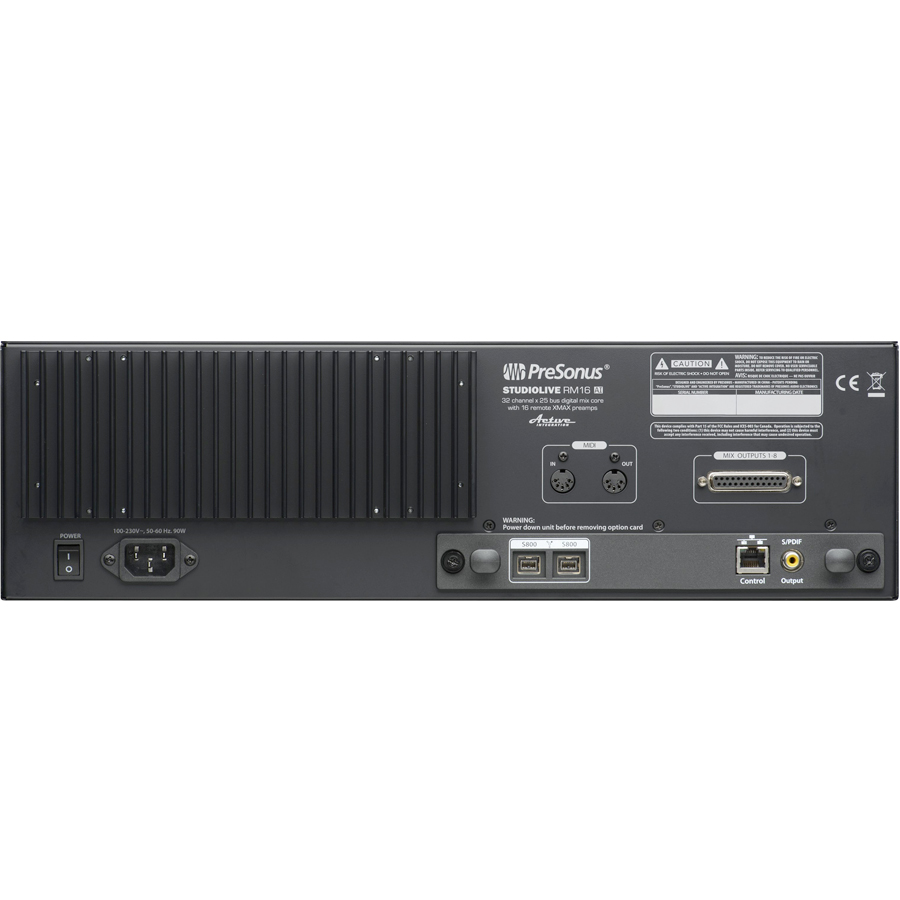

• 2 FireWire S800 ports, 1 Ethernet control port, and S/PDIF digital output

• Option card slot for future expansion, Thunderbolt, Dante, and AVB cards coming
  soon

• Up to 96 kHz operation

• Front-panel Mute All button temporarily mutes all inputs and outputs

• Stereo tape input (RCA jacks)

• Headphone output with volume knob and selectable source

• +48V Meters button to display phantom power assignment on the meter grid

• 1x1 MIDI interface

• 3U rackmount

• Extensive library of tutorials and downloads
