Elite Core CS45-200-REEL

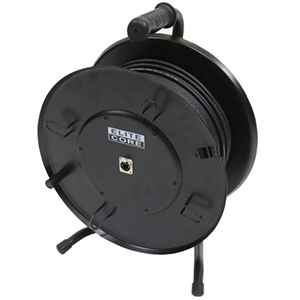

Converta-Shell Rugged Shielded Tactical CAT5E Cable 200' on Metal Reel

Product Code 71675

Retail Price
$461.99
Sale Price!
$327.99
Buy Today and Save $134.00 (29% from Retail)

Add to Cart

On Order

This Item Ships FREE!
Click for Details
Click Here For Shipping Options

Manufacturer
Elite Core

Elite Core CS45-200-REEL Converta-Shell Rugged Shielded CAT5E Cable, 200' on Metal Reel. Elite Core CS-45 CONVERTA-SHELL cables feature the patent-pending CS-45 connector. The CS-45 allows for EtherCon® style connections or RJ45 in a protective shell. Simply twist off the barrel of the CS-45 to reveal a fully protected RJ45 with push-button release in place. It's tour-grade and tough. Fully shielded with the drain wire solder to the RJ45 on both ends. Fully compatible with standard RJ45 jacks or with Neutrik® EtherCon® jacks.



0   0

MPN: CS45-200-REEL
UPC: 759681037095

  • Compatible with Neutrik® EtherCon® jacks
  • Fast, twist-off conversion from RJ45 to tactical ethernet locking XLR style jack
  • Fully finished RJ45 connection with release button
  • No need to dismantle cable to revert to RJ45
  • Flexible design provides for flat lay and smooth roll-up
  • Patented design assures twist pitch stability
  • Effective spacing of cable pairs controls crosstalk
  • Rugged build protects cable from damage caused by external force or roll-overs
  • Perfect for mobile audio, DMX, video, and LED screens

  • Type: SUPERCAT5E STP Tactical Shielded
  • Twisted Pair
  • Jacket Color: Black
  • Outside Diameter: 7.5mm
  • Conductor Count: 4 Pair
  • Construction Details: (7/0.2+PE0.99)*(2C+MYLAR+PE2.65)*4 PAIR+ DW 7/0.22TC+AL FOIL+PVC
  • Main Conductor Guage: 24 AWG
  • Conductor D.C.R. ohm/1Km: <89.3
  • Nominal Capacitance ~ Conductors: <68.9 pF/m
  • Nominal Capacitance ~ Pairs: <57.3 pF/m
  • Impedance: 100 ohm
  • Flex Life: >8730 (Load of 500G ±30°)
  • Tensile Strength: >109kgf
  • Optimal Working Temperature: -4°F - 140°F
  • Max Working Temperature: -40°F - 158°F
