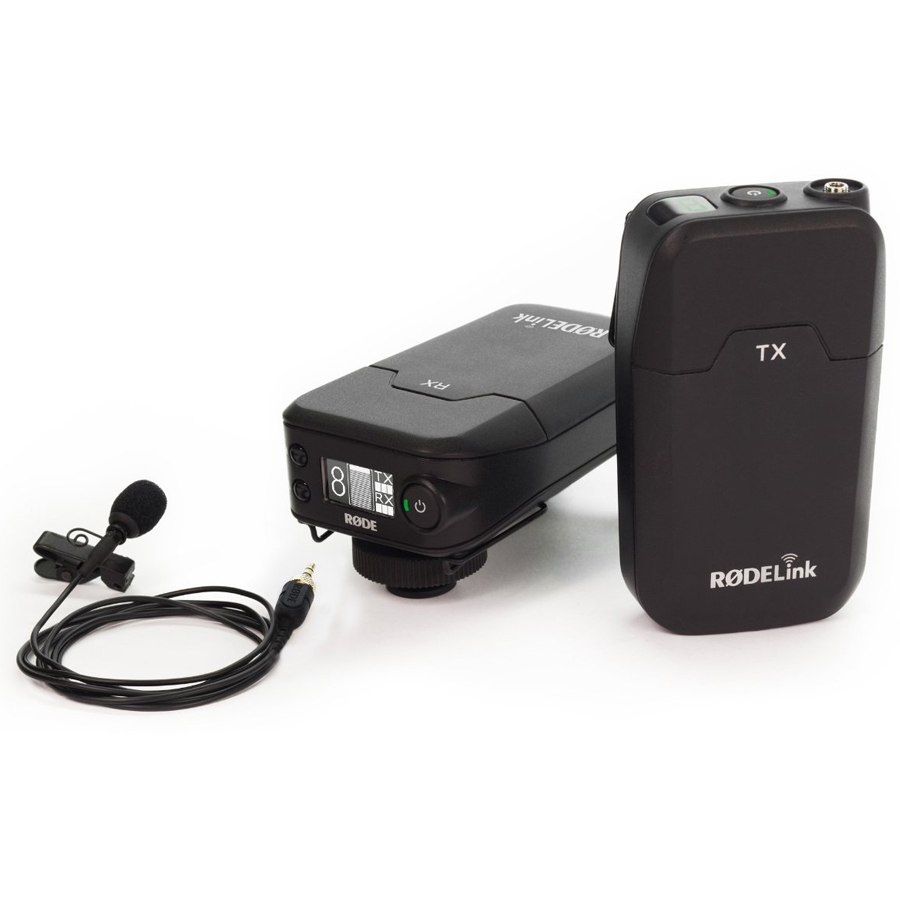

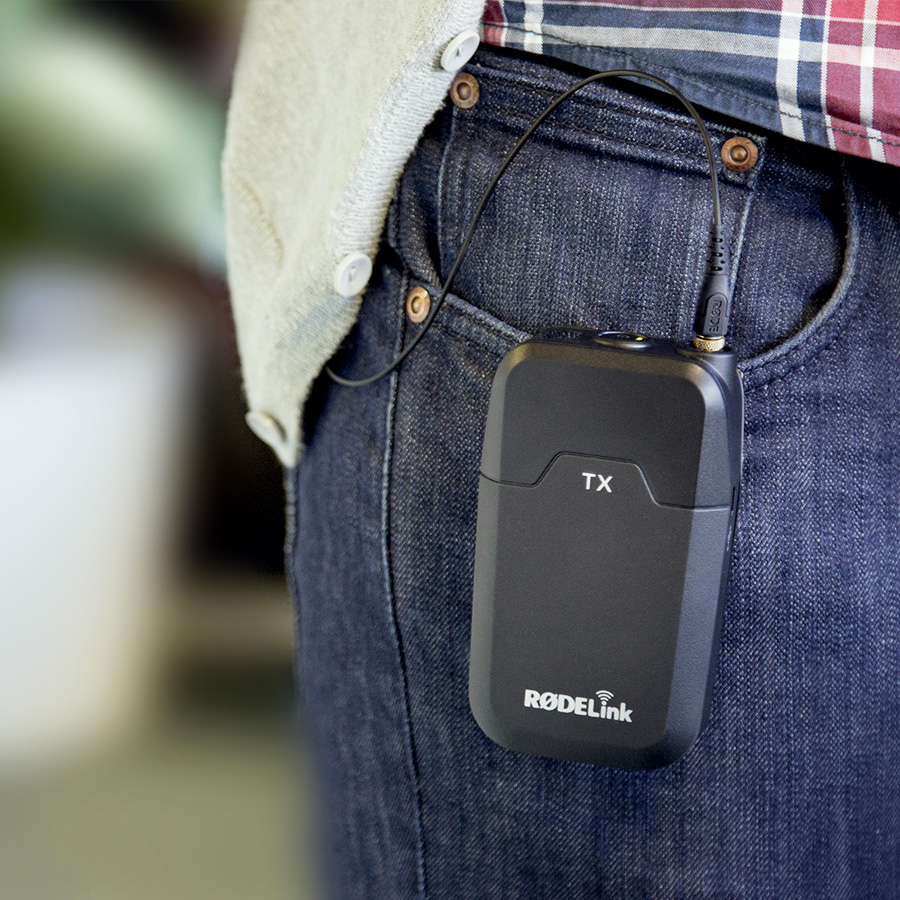

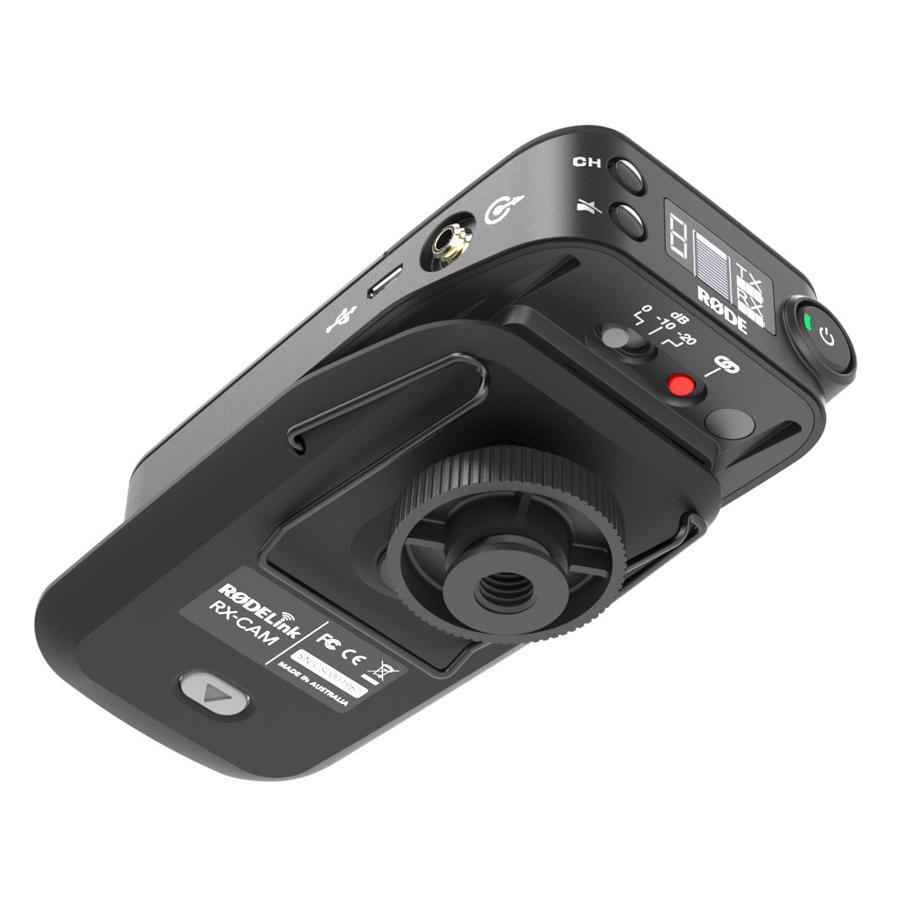

RØDELink represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE's omnidirectional Lavalier microphone is included in the kit to provide the highest possible audio reproduction quality.

* range estimations based on optimal environment

MPN: RODELINK FILMMAKER KIT
UPC: 698813004218

• Series II, 2.4GHz digital transmission

• 128-bit encryption

• Up to 100 metres range*

• OLED display (on receiver)

• One button pairing

• Three level gain control

• AA battery or USB powered

• Includes RØDE's broadcast Lavalier microphone


• Transmission type: 2.4GHz Fixed Frequency Agile System

• System dynamic range: 112dB

• Range (distance): Up To 100m

• Frequency range: 35Hz - 22kHz

• Maximum output level: 1v Rms (2.8v P-p)

• Max input signal level: 1v Rms (2.8v P-p)

• Max latency: 4ms

• Receiver (RX-CAM)

• Power source: 2 X AA Battery Or MicroUSB

• Antenna: Internal

• Input connection: 3.5mm TRS Locking Jack Socket - Dual Mono

• Input impedance: 300Ω

• Dimensions: 111mm X 65mm X 52mm

• Weight: 190gm

• Transmitter (TX-BELT)

• Power source: 2 X AA Battery Or MicroUSB

• Antenna: Internal

• Input connection: 3.5mm TRS Locking Jack Socket

• Input impedance: 10kΩ

• Dimensions: 111mm X 65mm X 40mm

• Weight: 190gm

  Lavalier

• Acoustic Principle: Pressure Gradient

• Active Electronics: JFET impedance converter

• Capsule: 0.10"

• Address Type: End

• Frequency Range: 60Hz - 18kHz

• Output Impedance: 3000Ω

• Maximum SPL: 110dB SPL (@ 1kHz, 1% THD into 1KΩ load)

• Maximum Output Level: 189.0dBu (@ 1kHz, 1% THD into 1KΩ load

• Sensitivity -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz

• Equivalent Noise Level (A-weighted) 25dB-A

• Weight: 1.00gm

• Dimensions: 12.00mmH x 4.50mmW x 4.50mmD
