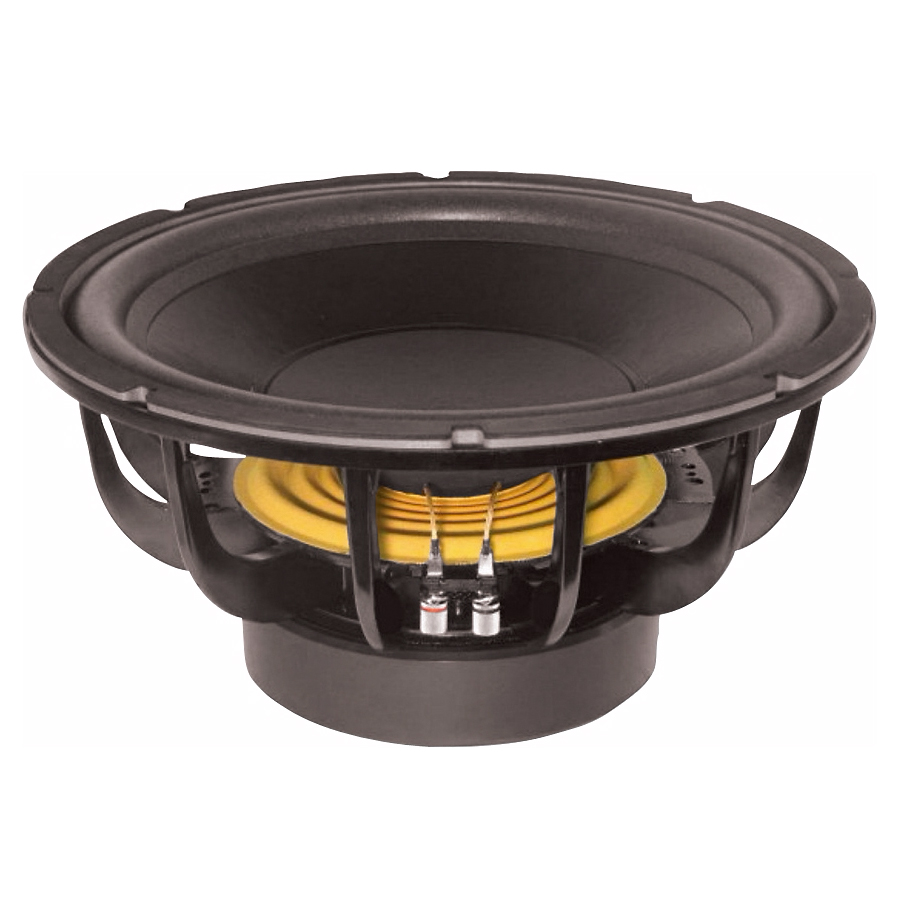

The Eminence Lab 15 is a high-power, high-excursion 15" subwoofer for applications requiring very deep bass at pro-sound levels. Its features include a 3" voice coil wound on a double layer aluminum former, an epoxy-reinforced apex/neck joint, and a double-laminated spider. This Eminence speaker also features a vented motor, with both a vented spider land and vented back plate.

MPN: LAB15
UPC: 876358001729

• Copper voice coil

• AL former

• Double stacked 80 oz. ferrite magnets

• Vented and extended core

• Die-cast aluminum basket

• Kevlar-reinforced paper cone

• Foam cone edge

• Acrylic, wetlook solid composition paper dust cap

  Mounting Information

• Recommended enclosure volume:

• Sealed: 35-108 liters/1.2-3.8 cu.ft.

• Vented: 71-290 liters/2.5-10.3 cu.ft.

• Driver volume displaced: 272.1 cu.in. / 4.46 liters

• Overall diameter: 15.34", 389.6mm

• Baffle hole diameter: 14.00", 355.5mm

• Front sealing gasket: Fitted as standard

• Rear sealing gasket: N/A

• Mounting holes diameter: 0.26", 6.6mm

• Mounting holes B.C.D.: 14.70", 373.5mm
