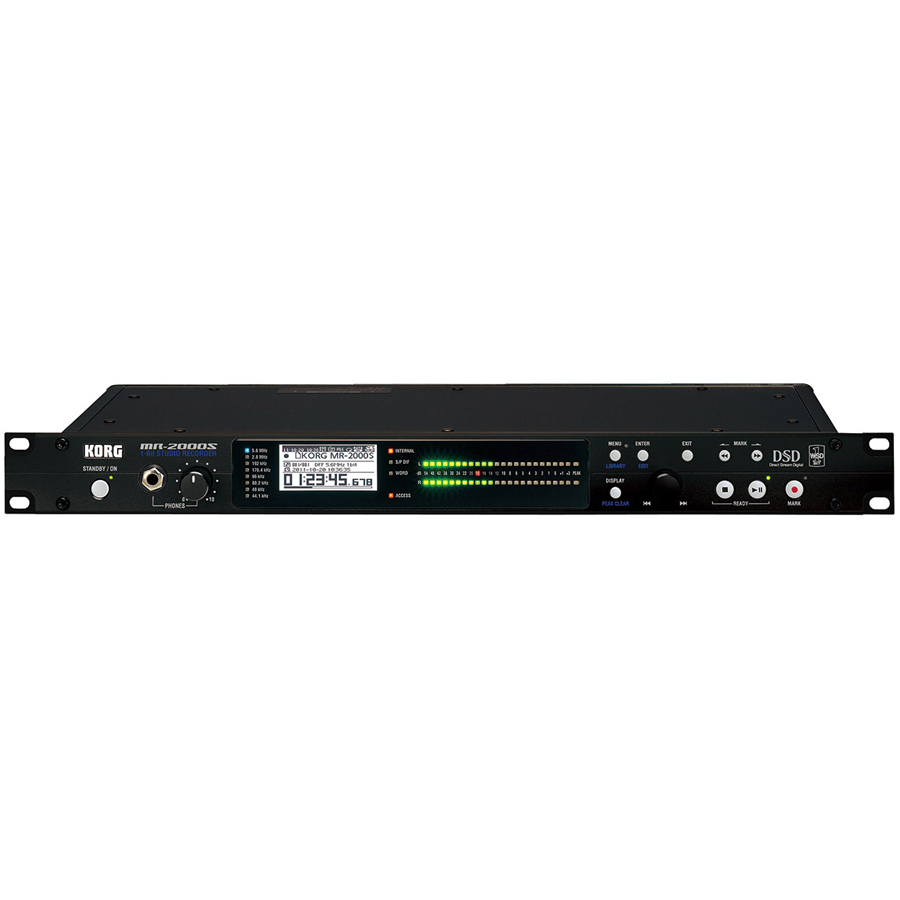

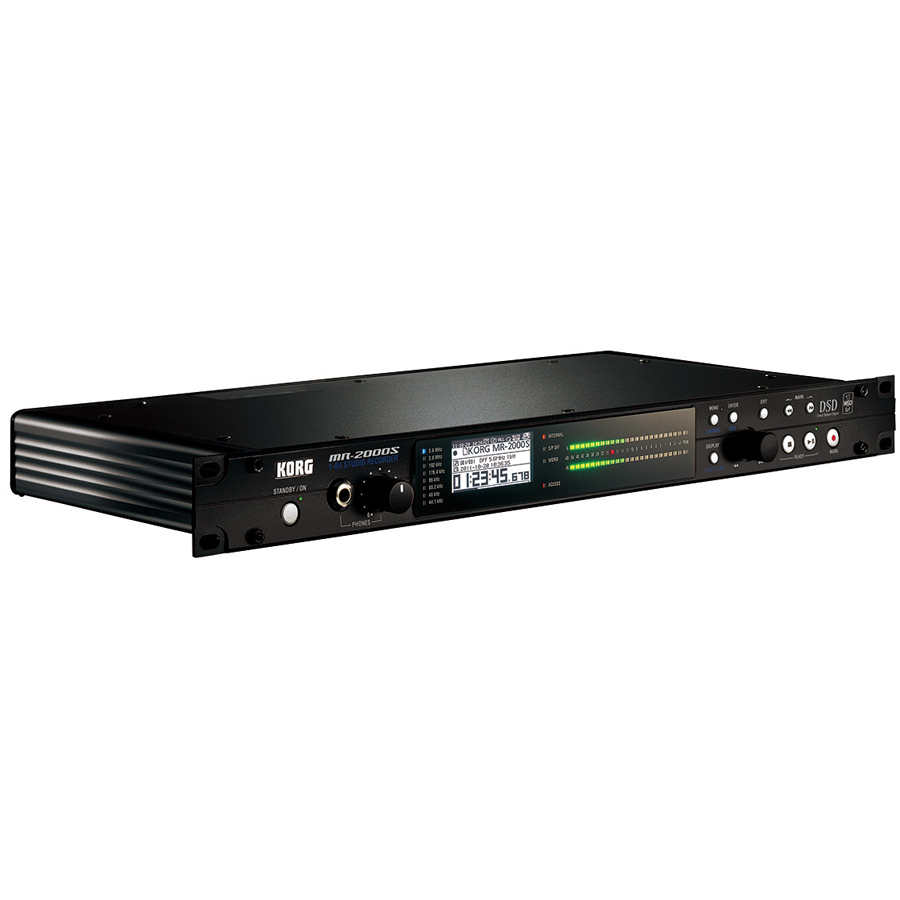

The Evolution of Korg's Finest DSD Recorder Now with SSD For Improved Performance
KORG's MR-2000SBK SSD is the premium HD audio archival system. It features a generous 128GB SSD drive in an intuitive and sleek single rackspace design that looks fantastic in studios and theater systems alike.

The MR-2000SBK SSD 1-bit recorder can capture at up to 5.6 MHz, double the sample rate of traditional DSD or SACD (Super Audio CD). This remarkable DSD format allows the MR-2000SBK SSD to archive and play back in the highest fidelity possible. With the growing popularity of HD audio sources and format, MR-2000SBK SSD is a perfect choice for futureproof recording and archival.

Bold Black Design
The black panel with its bold yet understated design will harmonize with studio equipment as well as your home audio system. To avoid impairing the atmosphere of your listening room, the LED level meters can be turned off, allowing you to immerse yourself in an undisturbed world of sound.

Legendary MR Series Audio Fidelity; Enhanced for the Modern Studio
The MR-2000S-BK combines KORG's legendary MR Series' unprecedented audio quality with the features that the modern studio demands, creating the ideal mastering and mixdown recorder. The single-rackspace design and ample on-board hard drive delivers a compact way to capture and carry away the sound you were hearing in the mixing environment. This compact format is also ideal for any live recording rig; or for grabbing that "off-the-board" live recording night after night. The rich black studio finish, backlit LCD, and bright LED level meters provide excellent visibility and response speed, ensuring accurate monitoring. The MR-2000S-BK fulfills the professional ideal of a truly future-proof studio master recorder.

Capturing the Complete Performance
A with all of KORG's MR Series recorders, the MR-2000SBK supports the 1-Bit/2.8224 MHz DSDIFF format used in creating the SACD (Super Audio Compact Disc). The MR-2000S-BK goes above and beyond this industry standard to provide 1-Bit/5.6448 MHz recording. At such accelerated sampling rates, the entire sound stage is faithfully captured, even during the softest passages. The clarity, ambience and true dynamic range of the original sound source are preserved with unprecedented accuracy.

Generous 128 GB SSD (Solid State Drive)
The internal 128 GB SSD allows approximately 23 hours of recording at the highest quality (1-bit 5.6448 MHz stereo), or approximately 190 hours of CD-quality (16-bit 44.1 kHz stereo). You can connect the MR-2000SBK to your PC via the USB 2.0-compatible port and transfer the recorded data at high speed. The MR-2000SBK can also be used as a FAT32 USB external drive to carry source material and other files when needed.

* The maximum continuous recording time is six hours.

MPN: MR2000SBK
UPC: 4959112093447

• 128 GB on-board SSD (Solid State Drive)

• Up to 190 hours (44.1 / 16 PCM) maximum recording time (approximate)

• Up to 23 hours (5.6 MHz DSD) maximum recording time (approximate)

• Compact 1U design is ideal for studio or live sound application

• 2-Track simultaneous recording; 2-Track simultaneous playback

• Advanced DSD format offers the highest fidelity recording and playback

• Multi-format versatility

• 5.6 MHz / 2.8 MHz DSD (1-Bit); Supports 1-Bit DSDIFF, WSD, and DSF formats

• PCM 24-Bit/16-Bit; 44.1 kHz thru 196 kHz. Broadcast Wave Supported

• MP3 Playback

• Detailed LED level meters (23 LEDs + Peak) with excellent visibility and response speed

• 160 x 104 pixel backlit custom LCD screen

• Coaxial Digital I/O for PCM sources integrates into existing production environments

• Analog I/O: XLR and RCA; XLR); Selectable reference levels (-12/-14/-16/-18/-20 dB)

• Word Clock I/O provides sync to additional MR-2000S/SBK recorders or other devices

• MR Control Link can control the recorder functions on multiple MR2000S/SBK units

• Up to 400 projects can be created in the MR-2000SBK for each recording date folder

• Exclusive AudioGate version 2.20 audio file convertor software is included

• This software supports reading and conversion of MR project files, fundamental editing, and adds support for file formats such as AAC, MP3 and WMA.

• USB2.0 High Speed mode is supported for rapid file transfers to and from your computer


• Recorder section

• Number of tracks 2 tracks, 2 tracks simultaneous playback/2 tracks simultaneous recording

• Recording formats - 1-bit audio format: 2.8 MHz at 1-bit, 5.6 MHz at 1-bit, DSDIFF format (extension .dff), DSF (extension .dsf), WSD (extension .wsd) PCM audio format: BWF (extension .wav) 44.1 kHz at 16/24 bit, 48 kHz at 16/24 bit, 88.2 kHz at 24 bit, 96 kHz at 24 bit,176.4 kHz at 24 bit, 192 kHz at 24 bit MP3 audio format (playback only): 44.1kHz/32kbps - 320kbps
• Recording Maximum approximately: 190 hours at 44.1 kHz/16 bit, 23 hours at 5.6 MHz/1- bit (for 128 GB SSD), Maximum continuous recording 6 hours

• SSD (Solid State Drive) 128GB

• Projects Recognizes a maximum of projects four hundred projects of each folder. Management of up to 160,000 Projects
• Mark points 100 points per project *No mark names USB functionality: Connect to computer via USB 2.0, usable as FAT32
• USB external drive

• Project editing Rename, Delete, Protect MR Control Link Transport, Recording formats, Mark (registration, move)

• General Display 160 x 104 pixel, LCD with backlight

• Level meter -54dBFS – 0dBFS (PCM audio); -54dBSACD – +3dBSACD (1-Bit audio); L and R each provide 23-step LED + peak LED with adjustable hold time and dimmed (off) mode
• Power supply AC100 –240 V

• Power consumption 20 W

• Dimensions (W x D x H) 482 x 220 x 45 mm / 18.9" x 8.6" x 1.7" (Including protrusions), 1U

• Weight 2.8 kg/6.17 lbs.

• Frequency response 10 Hz –20 kHz ± 1 dB Fs 44.1 kHz / 48 kHz, 10 Hz– 40 kHz ± 1 dB Fs 88.2 kHz/96 kHz/176.4 kHz/ 192 kHz, 10 Hz– 100 kHz (1-bit)

• S/N 103 dB (typical) at IHF-A THD+N 0.005% (typical), 20 Hz –20 kHz A/D conversion 2.8224 MHz/5.6448 MHz (1-bit), 24bit (PCM) D/A conversion 2.8224 MHz/5.6448 MHz (1-bit), 24bit (PCM)

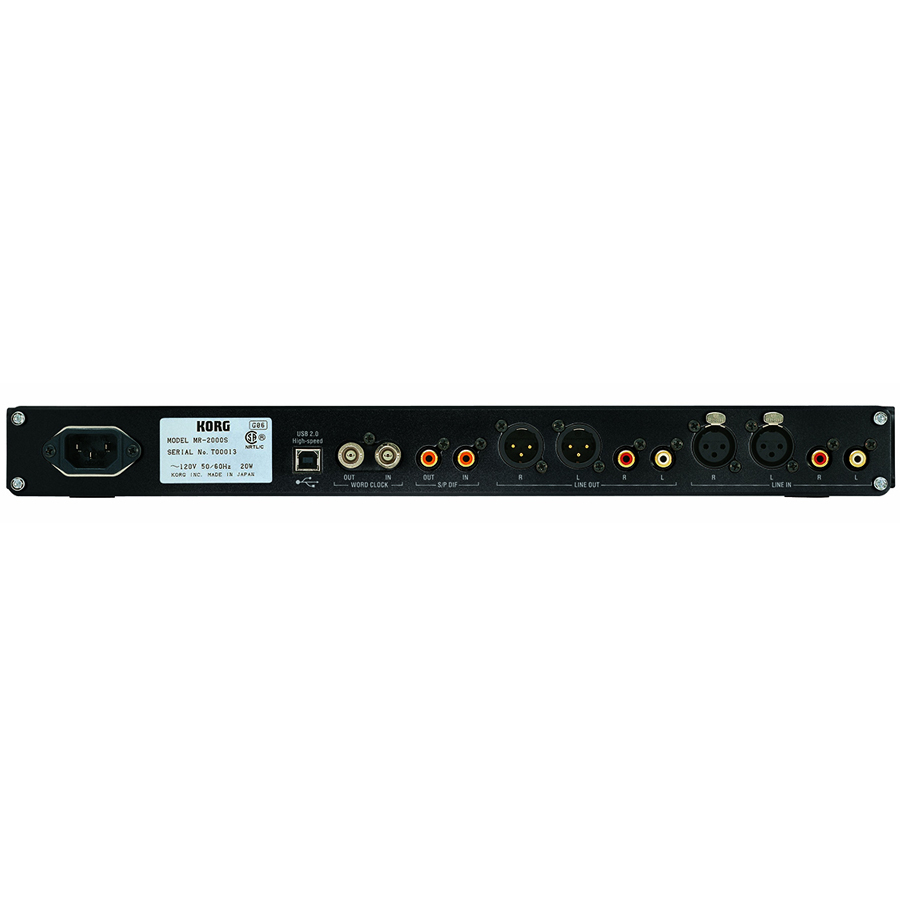

• Line In L/R (XLR) Connector XLR-3-31 type (balanced) Input
• impedance 22 k Ohms Nominal level +4 dBu (REC LEVEL=0dB) Maximum level +24 dBu LINE IN L/R (RCA)
• Connector RCA (Unbalanced) Input impedance 50k Ohms
• Nominal level -6 dBV (REC LEVEL = 0 dB)

• Maximum level +10 dBV

• LINE OUT L/R (XLR)

• Connector XLR-3-32 type (balanced)

• Load impedance 600 Ohms or greater

• Nominal level +4dBu

• Maximum level (0dBFS 0dB-SACD): +16 dBu (Nominal level= -12dBFS), +18 dBu (Nominal level= -14dBFS), +22 dBu (Nominal level= -18dBFS), +24 dBu (Nominal level= -20dBFS) LINE OUT L/R (RCA)

• Connector RCA (Unbalanced)

• Load impedance 47 k Ohms or greater

• Nominal level -6 dBV (REC LEVEL=0dB)

• Maximum level + 6dBV

• Phones Connector 1/4" stereo phone jack

• Load impedance 16 Ohms or greater

• Maximum level 170 mW + 170 mW at 32 ohms S/P DIF In/Out (coaxial)

• Connector RCA pin

• Format IEC60958

• Word Clock In/Out

• Connector BNC receptacle, 75 Ohms

• USB Connector Type B

• Format USB 2.0 compliant, USB mass storage class

• Supported operating systems Windows 7, or later Mac OS X 10.8 or later

• Included Items AC power cable, Install CD ("AudioGate" audio file conversion application)
