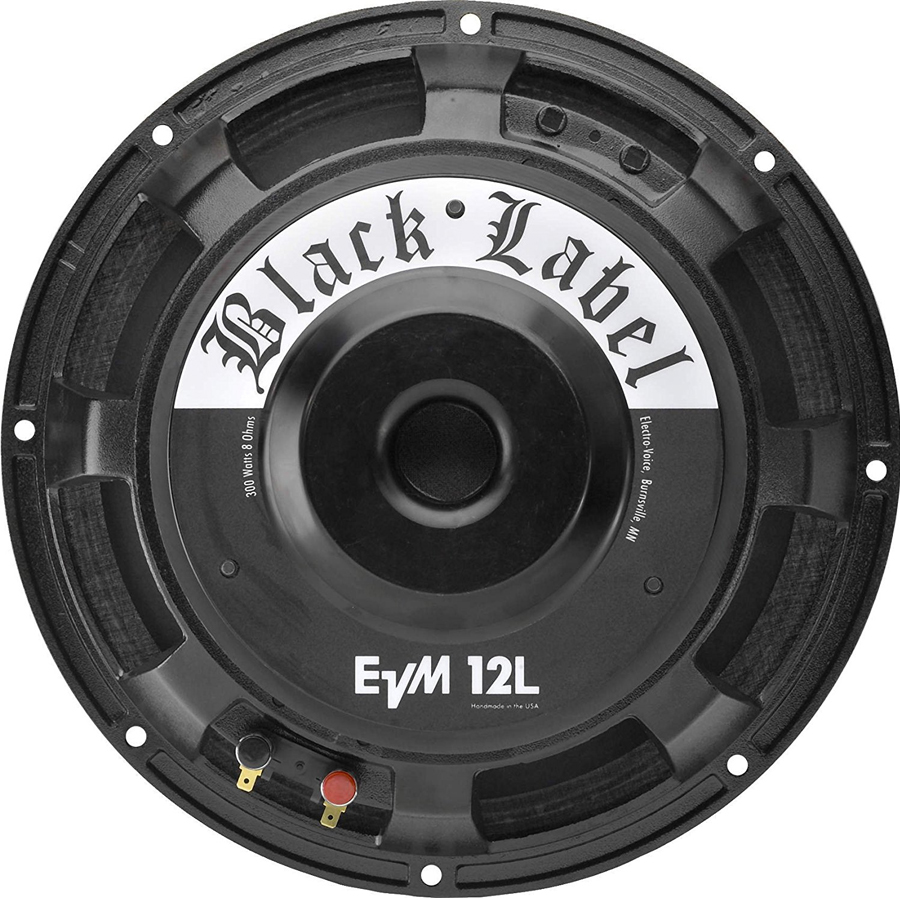

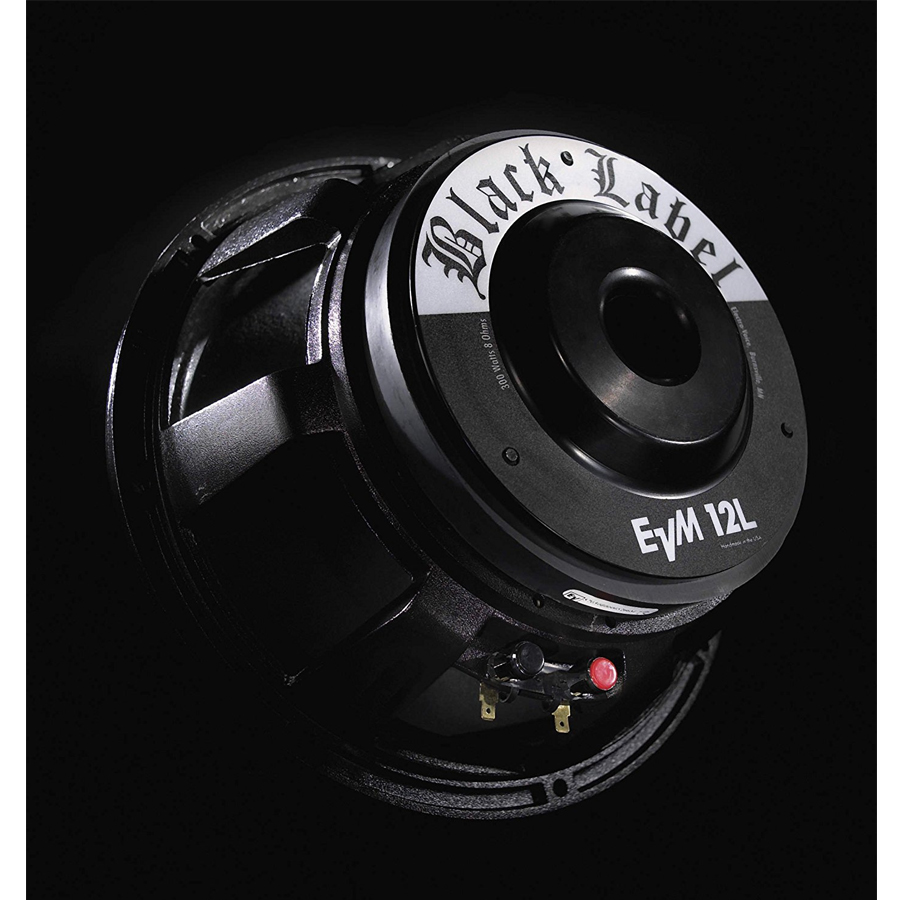

The EVM12L Black Label - Zakk Wylde Signature Guitar Loudspeaker from Electo-Voice is a 12" diameter speaker designed for professional, high-quality guitar amplification systems. The high-range frequency response is specifically designed for lead guitar performances and classic guitar tones. Packaged around an eight-spoke, diecast aluminum frame, the speaker features a low-mass edgewound voice coil on a laminated polyimide coil form, driven by a 16 lb magnetic structure. The speaker also features a curvilinear cone and fatigue-resistant cone suspension, and both the coil and magnetic structure are vented. This speaker can be front or rear mounted.

MPN: F.01U.273.861

• 200W power handling

• 100 dB sensitivity

• Cast frame creates a reduced low-frequency flex

• Edge-wound flat aluminum wire featured for maximum output and reliability

• 16.0 lb (7.3 kg) magnet assembly

• Power Continuous: 200 W

• RMS: 300 W

• Peak: 1000 W

• Sensitivity 100 dB

• Frequency Response 80 to 5,000 Hz

• Nominal Impedance 8 ohms

• Maximum Sound Pressure Level (SPL) 100 dB (1 W / 39.4" (1.0 m))

• Parameters Thiele-Small Driver Parameters:

• fs (free-air resonance frequency) 55 Hz

• Qes (electromagnetic Q at fs): 0.245

• Qms (mechanical Q at fs): 4.37

• Qts (total Q at fs): 0.232

• Vas (volume of air having same acoustic compliance as driver suspension): 2.9 ft3 (82.9 liters )

• n0 (half-space reference efficiency:) 4.3%

• Vd (peak displacement volume of diaphragm: 0.0059 ft3 (0.165 liters)

• Sd (effective diaphragm area ) : 78 in2 (0.050 m2)

• Xmax (peak linear displacement of diaphragm): 0.13" (3.3 mm)

• Mounting Mounting Hole Diameter (8 evenly spaced holes): 0.28" (7.1 mm) - letter "L" drill

• Bolt Circle Diameter: 11.56" (294 mm)

• Baffle Opening Diameter (front or rear mounting): 11.0" (279 mm)

• Optional Mounting Accessory: SMH-1 mounting hardware kit (sold separately)

• Voice Coil Diameter 2.5" (6.35 cm)

• Overall Diameter 12.2" (31.0 cm)

• Overall Depth 5.5" (13.8 cm)

• Weight 19.0 lb (8.6 kg)
