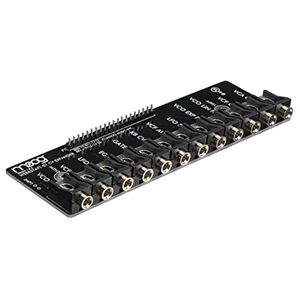

The Werkstatt CV Expander from Moog converts the Werkstatt's 20-pin patchable expansion header to twelve grounded 1/8" TS (3.5mm) jacks. This allows the Werkstatt to easily interface with external CV-equipped analog equipment.

MPN: KIT-03-000-0014
UPC: 094922450142

• Inputs: VCA: 0V to +5V in VCA EG mode, +/-2.5 V in VCA ON mode

• VCF: -5V to +5V

• VCO Linear FM: +/-2.5V (this is an inverting control input)

• VCO Exponential FM: -5V to +5V, 1V per octave, trimmable

• LFO CV: - 5V to +5V (negative CV slows LFO more than panel)

• VCF Audio: Unbuffered/unmixed AC coupled input to VCF

• Outputs: KB CV: Nominal 0.3V per semitone from one octave keyboard (attenuate for 1V per octave)

• GATE: 0V (off) to +5V (on) gate signal generated from low note priority/ legato keyboard circuit (jack may also be used as a gate input)

• EG: Simple ASD or AD type envelope generator, 0V to +5V signal

• LFO: -2.5V to +2.5V wave shape selected from LFO Wave Switch

• VCF: -2V to +2 V signal for audio or CV uses

• VCO: 0V to +5V signal, shape selected by VCO Wave Slide switch

• Package Weight: 0.25 lb

• Box Dimensions (LxWxH): 6.8 x 3.5 x 2.5"
