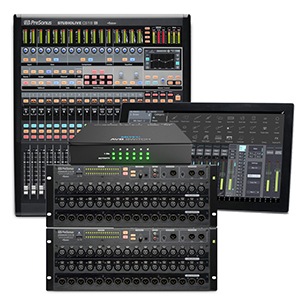

Presonus StudioLive RM32AI x2
Based on the StudioLive AI-series engine and controlled with powerful, battle-ready UC-Surface touch software for Mac®, Windows®, and iOS®, the StudioLive RM32AI rack-mount digital mixer is scalable and compact. It provides 32 inputs with recallable XMAXTM Class A preamps, 16 line outs, and 3 main outs (left, right, and mono/center); 32 internal channels and 25 buses; a 52x34 FireWire 800 recording interface; 96 kHz operation; and extensive signal processing. Designed for live-sound mixing and studio recording, the RM32AI's Active IntegrationTM technology includes direct Wi-Fi and Ethernet networking and tightly integrated CaptureTM recording software with true Virtual Soundcheck mode and Studio One® Artist DAW for Mac and Windows, and a Nimbit® account for online music promotion and distribution.

Presonus CS18AI
PreSonus StudioLive mixers redefined affordable compact mixing, forever changing the world and setting the standard for what digital mixers could be. Built from this award winning legacy, the CS18AI is a compact, intuitive mixing solution for the StudioLive RM16AI and RM32AI rack mount digital mixers and Studio One digital audio workstation. The StudioLive philosophy means being at home both live and in the studio, being easy to learn, and incorporating uniquely PreSonus workflows and features.

Networked with StudioLive RM-series mixers via AVB Ethernet and PreSonus UCNET technology, the CS18AI enables complete hardware control of all mixer features. With a CS18AI combined together with a StudioLive RM mixer, you can keep your mixing I/O on stage in a rack, while running the mix from hundreds of feet way via a lightweight Ethernet cable—eliminating the need for a cumbersome analog snake and a separate stagebox.
In addition to mixing with the CS18AI's touch-sensitive motorized faders, a StudioLive RM as your mix core allows you to integrate an iPad®, a large Windows® 8 touch screen, or a combination of them all for an unprecedented mixing and control environment.

MOTU AVB Switch
Audio Video Bridging (AVB) is the exciting new extension to Ethernet specifically engineered for real-time, low-latency, fully synchronized streaming of audio and video over Ethernet. AVB fulfills the promise of a true A/V standard that brings together the worlds of networking technology and professional audio/video. The MOTU AVB Switch™ provides five 1-Gigabit AVB ports for any AVB devices (even other switches), plus an extra sixth port for bridging to a standard Ethernet network. Enjoy the many benefits of AVB, including plug-and-play operation, guaranteed quality of service, and self-regulated network resource management.

MPN: SLRM32 x2 CS18AI AVB

Presonus StudioLive RM32AI x2

• Fully recallable mixer

• 32 locking XLR inputs with recallable XMAXTM Class A mic preamps and +48V
  phantom power

• 16 XLR line outputs on the front, mirrored on rear-panel DB25 jack

• 3 XLR main outputs (left, right, mono) with analog trim pots

• 32 LED meter grid

• 32 internal channels

• 25 mix buses

• 16 aux mix buses

• 3 main mix buses (left, right, mono)

• 4 internal FX buses (2 reverb, 2 delay) o Stereosolobus

• Fat Channel signal processing on all input channels and all buses, with 4-band parametric EQ, compressor, gate, limiter, and more

• 52x34 direct digital FireWire recording interface

• UC-SurfaceTM battle-ready, live mixing and control software

• Designed specifically for live sound mixing

• Multiplatform support for Mac®, Windows®, and iPad®

• Windows 8 multi-touch-compatible for large touchscreen mixing

• Contextual-based navigation for quick, intuitive access to all mixing functions

• Compatible with free QMixTM-AI personal monitoring control app for iPhone®/iPod® touch

• Complete solution: Includes CaptureTM live-recording software and Studio One® Artist DAW for Mac and Windows, and Nimbit® account for online music promotion and distribution.

• USB jack and included Wi-Fi LAN adapter provides wireless control

• 2 FireWire S800 ports, 1 Ethernet control port, and S/PDIF digital output

• Option card slot for future expansion, Thunderbolt, Dante, and AVB cards coming
  soon

• Up to 96 kHz operation

• Front-panel Mute All button temporarily mutes all inputs and outputs

• Stereo tape input (RCA jacks)

• Headphone output with volume knob and selectable source

• +48V Meters button to display phantom power assignment on the meter grid

• 1x1 MIDI interface

• 4U rackmount

• Extensive library of tutorials and downloads

  Presonus CS18AI

• 18 100mm, touch-sensitive motorized faders: 16 Channel, 1 Flex, 1 Master

• Control up to 64-channels on StudioLive RM AI mix systems

• Navigate using traditional layers or with intuitive PreSonus Filter DCA groups

• Built-in 4x2 AVB audio interface with 2 XMAX preamps, 2 balanced TRS line inputs, 2 XLR and stereo headphone output

• Connects via a simple Ethernet cable eliminating the need for cumbersome analog or digital snakes and stage boxes

• Studio One control surface functionality

• 18 100mm, touch-sensitive motorized faders: 16 Channel, 1 Flex, 1 Master

• Control StudioLive RM AI mix systems of up to 64-channels

• Full PreSonus Fat Channel DSP control with individual encoders and 12-LED displays for

• Gate Threshold, Range, Attack, Release

• Compressor Ratio, Attach, Release, Gain

• Limiter Threshold

• EQ Low, Low-Mid, High-Mid, High

• Metering

• Sixteen 12-LED channel ladder level and Fat Channel displays

• Three 11-LED Select Channel Level/Compressor/Gate displays

• 11-LED displays for Main Center/Mono, Left and Right

• Variable-color (RGB) Select buttons for easy channel and Filter DCA group identification

• 16-channels of high resolution 64 x 96 scribble strip display with Pan indicators

• 4.3" / 109 mm color touch-sensitive display with 43 screens including

• Compressor (draw curve via touch)

• EQ (draw curve via touch)

• Gate (draw curve via touch)

• Compressor (draw curve via touch)

• Effects, Scenes, Markers Edit

• Audio Routing

• Channel Presets and settings

• Talkback Assign

• 4 Effects Mute/Mix button with TAP

• Navigate using traditional layers or with intuitive PreSonus
• Filter DCA groups

• Active Integration with PreSonus software includes UC
• Surface™ software for extended 2nd screen workflows and direct Capture™ control for live recording and virtual sound checks

• Studio One control surface functionality including: Touch-sensitive motorized fader control over channel faders and automation, Channel Mute, Channel Solo and Solo clear, Channel Select, Channel Pan control, Scribble strip names, pan indication, and current automation mode, Channel layer navigation, Aux mix and transport control, Automation mode selection, Metering. Even more features coming in upcoming Studio One releases

• 4x2 AVB audio transport control with Marker Shift, REW/FF options

• Analog I/O

• 2 remote XMAX™ mic preamps for talkback, room mic or other local inputs

• 2 balanced 1/4" TRS line inputs

• 2 XLR line outputs

• stereo headphone output with level control

• Monitor control level control

• 4-pin XLR lamp connection

• Footswitch input

• Silent internal PSU with no fans

• Same footprint as StudioLive 16.4.2AI for integration in 19" rack mounts and 3rd-party studio desks

• Optional iPad mount accessory

  Computer system requirements:

• General

• Internet connection

• AVB compatible Ethernet connection

• Internet connection for registration and software download


• Mac®

• Operating System: OS X 10.8 64-bit or later

• Hardware: Intel® Core™ i3 processor or better, 4 GB or more RAM (8 GB recommended)


• ​Windows® PC

• Operating Systems: Windows 7x 64/x86 SP1 or Windows 8x64/x86

• Hardware Minimum: Intel® Core™ i3 processor or better (Core i5 or faster recommended), 8 GB or more RAM

  ​
• iOS

• Operating System: iOS 7.03 or later

• Hardware: iPad Air, iPad mini with Retina display, iPad (3rd or 4th generation), iPad mini

  MOTU AVB Switch

• Industry standard IEEE 802.1 AVB Ethernet switch.

• Plug-and-play — supports automatic device discovery and network bandwidth management among connected AVB devices. No IT expertise required.

• Standard cabling — use standard CAT-5e or CAT-6 Ethernet cables up to 100 meters.

• 1-Gigabit operation — supports high audio channel counts and very low latency.

• Guaranteed quality of service — all existing audio and video streams are maintained, regardless of other network traffic.

• Network-wide clock and sync accurate to nanoseconds.

• Bridging to standard Ethernet for internet and Wi-Fi.
