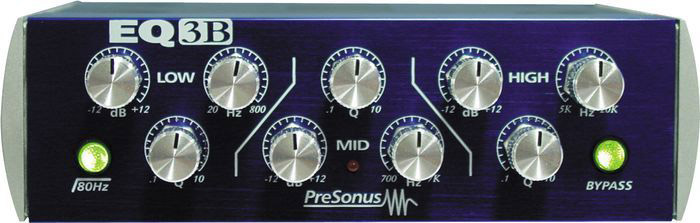

The EQ3B is a three-band fully parametric single channel analog EQ with smooth highs and solid lows. Perfect for carving out unwanted frequencies or musically boosting frequencies that need to be emphasized. It is a perfect compact EQ solution to customize and tailor your sound. The EQ3B features an 80Hz roll-off (to eliminate room rumble and increase clarity), +/-12 dB of boost/cut on three overlapping frequencies along with variable Q (bandwidth) for detailed narrow notching or wide musical shaping. The EQ3B is ultra quiet and is perfect solution for many applications including, vocals, guitar, bass, keyboards and more.

• Three fully parametric bands with overlapping frequencies.

• High pass rumble filter.

• Extremely quiet operation.

• Warm, wide dynamic range for recording or live.

  Input

• XLR Impedance: 10k Ohms

• TRS Impedance: 10k Ohms

  Panel Controls

• Low Frequency Range: 20Hz to 300Hz

• Mid Frequency Range: 200Hz to 3kHz

• High Frequency Range: 2kHz to 20kHz

• Bandwidth Adjust (Q): .1 to 10

• Gain Adjust: -12dB to +12dB

• High Pass Filter: 80Hz
  :
  Power Supply

• Type: Linear

• Insert (TRS):

• Input: 16VAC/1000mA (factory configured)

  Output

• XLR Balanced: 51 Ohms Impedance

• 1/4" TRS Unbalanced: 51 Ohms Impedance

  Performance

• THD+Noise (Unweighted): 0.006% at 0dB

• Noise Floor: -98dB

• Signal to Noise: >95dB

• Power Supply Rejection: >98dB


• Power: 16 Watts

  Physical

• Weight: 5lbs.

• Dimensions: 5.5 x 5.5 x 1.75

• Mounting: Universal Rack Tray Insert

• Chassis: Steel

• Panel: Brushed Aluminum

• Sides: Cast Aluminum
