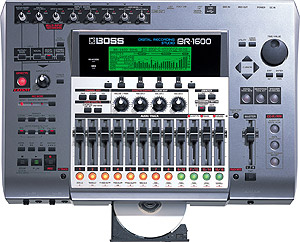

BOSS's BR-1600CD 16-track recorder, the most popular and full-featured portable 16-track on the market, expands with a Version 2 upgrade. Already powerful with its eight XLR inputs for simultaneous recording, pro-grade effects, and backing tracks, the BR-1600CD with Version 2 upgrade (free for all previous BR-1600 units) improves and adds to the existing effects, including COSM® bass amp models from the GT-6B, enhanced vocal tools, MIDI sync capability, and more. Also new to Version 2 — the BR-1600CD can read BR-1200CD/1180CD song data, no conversion process necessary.

MPN: BR1600CD

- 16-track (256 V-Track) digital studio with 40GB hard drive and CD-R/RW drive
- Record all 8 XLR inputs simultaneously—ideal for tracking live performances
- Powerful onboard effects including COSM modeling for guitar, bass and vocals
- New Vocal Tool Box with auto pitch correction and Harmony Sequence function
- 16 individual Track EQs, plus 8 dedicated compressors
- Mastering Tool Kit with multi-band compression for loud and punchy CDs
- Create backing tracks quickly via independent Drum/Bass and Loop Phrase tracks
- USB port for easy data exchange, plus V-LINK video control*
- COSM models added (derived from BOSS's GT-6B)
- Enhanced Vocal Tool Box for better vocals and backings
- MIDI Slave capable for control from external MIDI devices
- BR-1180CD/1200CD data compatible


Tracks
- Track: 16
- V-Track: 256 (16 V-Tracks per each Track)
- * Up to 8 tracks can be recorded simultaneously, and up to 16 tracks can be played back simultaneously.

Maximum Useful Capacity / Recording Time
- Internal Hard Disk: 40 G bytes / Recording Time; 120 hours (conversion in one track)
- * The recording times shown above are approximate. Times may vary depending on the number of songs and size of imported loop phrase that were created.
- * The recording time s shown are the total for all tracks used. Therefore, if each of the sixteen tracks contain an equal amount of data, the length of the resulting song will be approximately 1/16 of the time shown.

Signal Processing
- AD Conversion:24 bit, AF Method (Guitar/Bass), 24 bit, â–³Σ Modulation (VOCAL, MULTI-TRACK, STEREO TRACKS)
- DA Conversion: 24 bit, â–³Σ Modulation
- Internal Processing: 24 bit (digital mixer section)
- Recording Data:16 bit linear

Sample Rate
- 44.1 kHz

Frequency Response
- 20 Hz to 20 kHz (+1/-3 dB)

Total Distortion
- 0.02 % or less (INPUT SENS: CENTER, 1 kHz at nominal output level)

Nominal Input Level (Variable)
- GUITAR/BASS jack: -10 dBu
- MIC 1-8 jacks (XLR): -40 dBu
- INPUT 1-8 jacks: -10 dBu

Input Impedance
- GUITAR/BASS jack: 1 M ohms
- MIC 1-8 jacks (XLR): 12.5 k ohms (HOT-COLD), 6.5 k ohms (HOT-GND, COLD-GND)
- INPUT 1-8 jacks: 22 k ohms

Nominal Output Level
- LINE OUT jack:-10 dBu

Output Impedance
- LINE OUT jack: 2 k ohms
- PHONES 1, 2 jack: 100 ohms

Recommended Load Impedance
- LINE OUT jack: 20 k ohms or greater
- PHONES 1, 2 jack: 8 to 50 ohms

Residual Noise Level
- LINE OUT jack: -90 dBu or less (INPUT SELECT: GUITAR/BASS, input terminated with 1 k ohms, INPUT SENS: CENTER, IHF-A, typ.)

Interface
- DIGITAL IN: S/PDIF 16-24 bit (coaxial type)
- DIGITAL OUT: S/PDIF 16-24 bit (coaxial type)
- USB connecter (B type)

Display
- 130 x 36 mm (Backlit LCD)

Connectors
- MIDI IN connector
- MIDI OUT connector
- USB connector
- DIGITAL IN connector (coaxial type)
- DIGITAL OUT connector (coaxial type)
- FOOT SW jack (1/4 inch phone type)
- EXP PEDAL jack (Stereo 1/4" phone type)
- LINE OUT jacks (RCA Phono type)
- INPUT 1-8 jacks (unbalanced, 1/4" phone type)
- MIC 1-8 jacks(XLR balanced)
- PHONES 1 jack (Stereo 1/4" phone type)
- PHONES 2 jack (Stereo 1/4" phone type)
- GUITAR/BASS jack (1/4" phone type)

Power Supply
- DC 12 V; AC Adaptor (Roland PSB-7U)

Power Consumption
- 3 A

Accessories
- AC Adaptor: PSB-7U
- Owner's Manual
- Effect Patch List
- DISCRETE DRUMS (CD-ROM)


Size and Weight ( excl. AC Adaptor )

Width
- 494 mm
- 19-1/2 inches

Depth
- 339 mm
- 13-3/8 inches

Height
- 99 mm
- 3-15/16 inches

Weight
- 4.9 kg
- 10 lbs. 13 oz.
