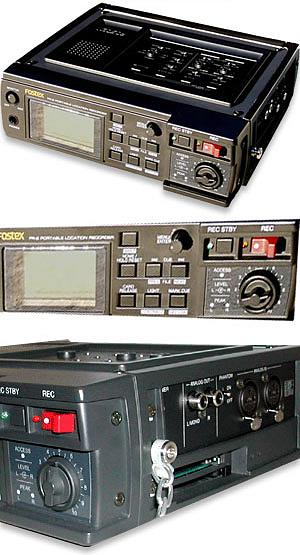

Designed for location sound recording, the FR-2 sets a standard in the compact portable 2-track recorder market. The Fr-2 records to PCMCIA 1.8" hard drives or Type II Compact Flash cards. This is also the "first" to include the ability to record to 24 bit 192kHz.

Main Features:
•Records to PCMCIA 1.8" HD or Type II Compact Flash card
•Stereo/mono selectable
•Up to 24 bit/192 kHz
•8 AA batteries will last around 2 hours
•File transfers via PCMCIA cards or USB
•Quick file naming
•Optional timecode

MPN FR2 0 1

Item Number
FR2

Initial Specs:
•4xAA batteries or 12v DC power
•5w power consumption
•10"(w) x 4"(h) x 8.5"(d)
•About 2 Kg w/o batteries
•100 dB dynamic range
•2 analog audio inputs via 3 pin XLR connections
•+48v phantom power
•RCA analog outputs
•1 watt speaker output
•Digital XLR input

Recording Times:
in Minutes

16/48 Stereo
5GB = 434
1GB = 86

24/96 Stereo
5GB = 144
1GB = 28
