LD Systems Maui 28 Black

Compact Column PA System Active

Product Code 69038

Retail Price
Sale Price!
Buy Today and Save $300.00 (19% from Retail)

Add to Cart

Oversized Shipping Charge: $24.95
Click for Details
Click Here For Shipping Options

8thstreet Reward$
Found a Lower Price?
Call 1-800-878-8882
Click here to let us know now!

LD Systems

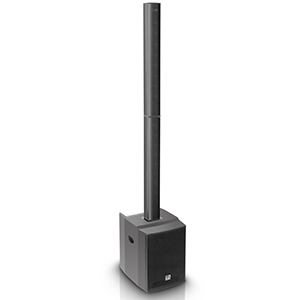

The LD MAUI 28 (Multiple Array User Intuitive) is the perfect solution for musicians and DJs as well as presentations and events with sophisticated music playback.

Because no cables and stands are required, this "plug-and-play" system can be set up and taken down again very easily and quickly. Frequency-response-based 4.1 five-way amping results in a clear, dynamic and balanced sound throughout the frequency range of this system. The array configuration ensures greater coverage with very well-balanced sound distribution even in the farthest corners of the venue.

The MAUI 28, which combines PA and monitoring system in one, guarantees the same sound experience for both audience and musician. No disturbing speaker cables, no speaker stands, no transport issues, simply plug in the mixer and you're ready to go.

0   0


  • Product number: LDMAUI28
  • Product type: PA system
  • Type: active
  • Colour: black
  • Max. SPL (continuous): 115dB
  • Max. SPL (peak): 123dB
  • Frequency response: 45 - 20,000Hz
  • Dispersion (H x V): (horizontal) 120
  • Weight: 35kg

  • Low/mid driver dimensions: 2 x 8"
  • Low/mid driver dimensions (mm): 2 x 203mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Cabinet construction: vented, V Construction
  • Cabinet material: 15 mm Plywood
  • Cabinet / Housing surface: Dura Coat LX Texture Paint
  • Subwoofer width: 390mm
  • Subwoofer height: 450mm
  • Depth Subwoofer: 510mm
  • Subwoofer features: Custom-made multipin connector for vertical array

    Mid/Hi System
  • Midrange size: 16 x 3"
  • Midrange size: 16 x 76mm
  • Midrange magnet: Neodymium
  • Midrange brand: Custom-made
  • Tweeter dimensions: 1"
  • Tweeter dimensions (mm): 25mm
  • Tweeter magnet: Ferrite
  • Tweeter brand: Custom-made
  • Loudspeaker inputs: 1
  • Speaker input connections: Custom-made multipin : Closed
  • Mid/Hi system cabinet material: aluminium
  • Mid/Hi system cabinet surface: Paint
  • Mid/Hi system width: 110mm
  • Mid/Hi system height: 790mm
  • Mid/Hi system depth: 90mm
  • Mid/Hi system features: Vertical array with 4-way amping and extremely broad dispersion characteristic

    Amplifier Module (integrated in Subwoofer)
  • Amplifier: 5-way Class A/B
  • Amplifier Output System (RMS): 400W
  • Amplifier Output System (Peak): 1000W
  • Amplifier Output Subwoofer (RMS): 200W
  • Amplifier Output Mid/Hi (RMS): 4 x 50W
  • Protection circuits: Dual limiter
  • Cooling: Aluminium heat sink
  • Controls: volume, Subwoofer Volume, mains switch (on/off)
  • Display: Power, limit, Lock, signal, protect (protection circuit engaged)
  • Operating voltage: Volex mains socket, transformer, 110 AC, 50-60 Hz
  • Line input connectors: 6.3 mm Jack, RCA, XLR
  • Line output connectors: XLR
  • Loudspeaker outputs: 1
  • Speaker output connections: Custom-made multipin
