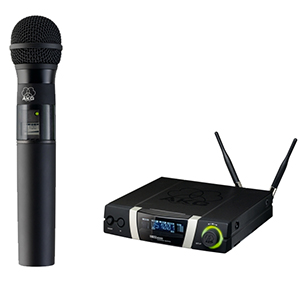

AKG SR4000 RF Band I
The AKG SR4000 Receiver is designed for use with the WMS4000 series body-pack and handheld transmitters. The receiver operates on a 30MHz wide UHF band containing inter-modulation free preset frequencies and a tuning mode with access to up to 1,200 switchable frequencies. The receiver operates as a true diversity receiver in which 2 independent receivers relay for the strongest possible signal without interference.

A pilot tone data stream decoder enables transmitter information such as battery life and mute status to be accurately displayed on the receiver. The receiver features balanced / unbalanced switchable XLR and unbalanced 1/4" Phone (3.5mm) output jacks. Also available on the rear panel is a data port, and logic port connectors for remote operation via software.

HT4000 RF Band I/50mW
Wideband UHF handheld transmitter for use with interchangeable microphone elements;
30 MHz wide UHF band with up to 1200 selectable frequencies;
backlit display and jog switch for ease of use; up to 50 mW RF radiation for reliable transmission;
operates for up to 15 hours on dry batteries, 12 hours on optional BP 4000 battery pack and displays remaining battery life.

The HT 4000 is a professional handheld transmitter with a rugged body and connects to a choice of six different microphone elements to cover a wide range of applications. The 30 MHz wide UHF band provides up to 1200 selectable frequencies and several preset frequency banks for various countries make it easy to set up a multichannel system.
A pilot tone system continuously transmits transmitter status data including MUTE switch position and remaining battery life to the receiver. Integrated charging contacts let you charge the optional BP 4000 battery pack without having to remove it from the transmitter. After only one hour, the battery pack will be fully charged and you can use the transmitter for 12 hours continuously.

The HT 4000 will transmit the excellent audio of the AKG microphone elements in all its splendor even over large distances or in difficult environments.

MPN: 3258X00010
UPC: 885038019381

AKG SR4000 RF Band I

• Type of Receiver: SR4000 Frequency Agile UHF Diversity

• RF Carrier Frequency Range: Band I : 650.0 - 680.0 MHz

• Approx. Working Range: 330 Feet (100 m)

• Signal-to-Noise Ratio: >120 dB(A)

• # Of Channels Approximately 50 Channels - up to 18 inter-modulation free frequencies available on each 30MHz frequency band
  Type of Output(s): Balanced 3-pin XLR-male, switchable from -30 to +6dB

• Unbalanced 1/4" Phone jack (6.5mm)

• Headphone Monitoring: No

• Power Requirements 11 to 15V DC or AC from external power supply

• Battery Type/Approx. Life not applicable

• Display: Back-lit LCD

• Mounting Options: Table Top / Rack Mount (rack-mount hardware included)

• Antenna Type: quarter-wavelength

• Dimensions: (W x D x H) 7.8 x 7.4 x 1.7" (200 x 190 x 44mm)

• Weight: 34 oz (972 g)

  650.1-680.00 MHZ
