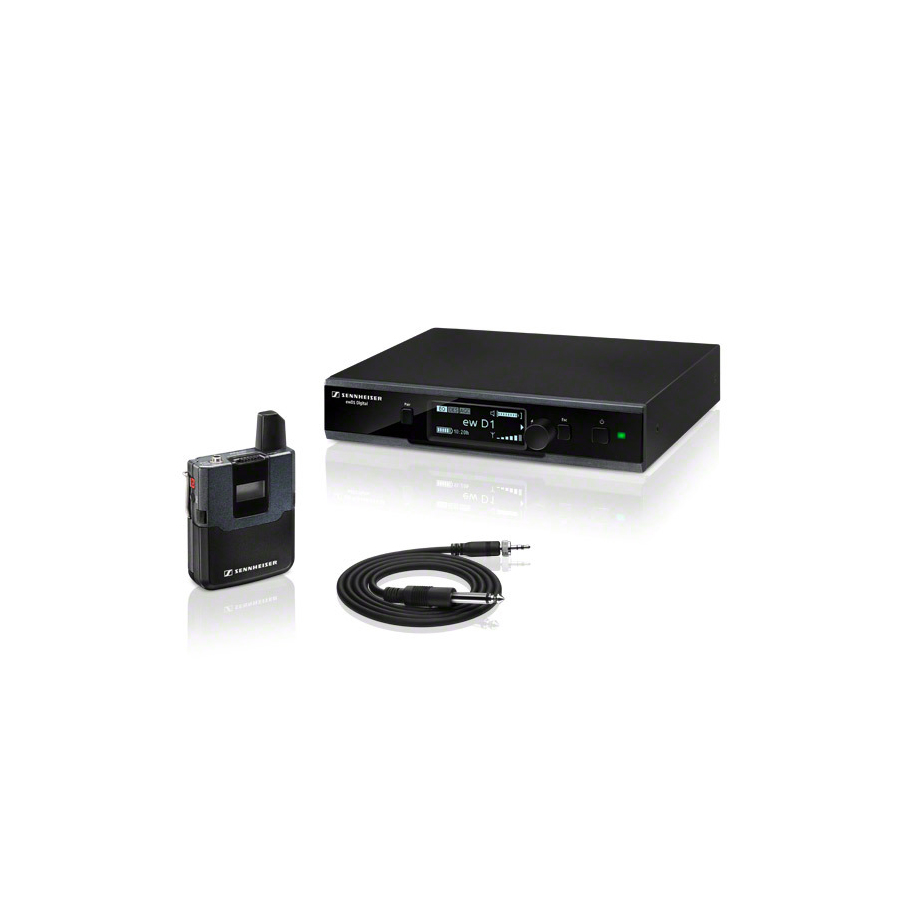

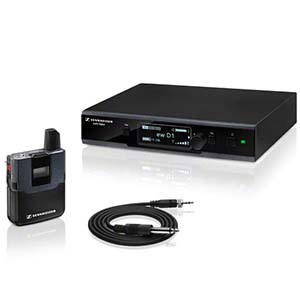

evolution wireless D1 Instrument-Set with CI1 cable for live stage use.

evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

MPN: 505822
UPC: 615104242470

• Lightweight bodypack transmitter, robust guitar cable included

• Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band

• Automatic frequency management

• Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth

• Audio effects: equalizer, de-esser, automatic gain control

• iOS app for remote control and monitoring of the system

• Sturdy metal housing

  SK D1

• Microphone Frequency response: 50 to 20,000 Hz

• Max. input level: 2.2 V RMS

• Weight approx. 85 g

• RF output power adaptive, up to 100 mW (country-specific)

• Battery Specification 2 x AA size battery (1,5V), Operating time: typ. 6 h

• Input impedance 1 MΩ

• Connection 3.5 mm jack socket, lockable

• Line Frequency response: 20 to 20,000 Hz

• Max. input level: 3.3 V RMS

• Input sensitivity automatic sensitivity adjustment

• Accupack BA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h

  System

• THD, total harmonic distortion typ. < 0,1 %

• Storage temperature – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)

• Operating temperature Operation: – 10 °C to +55 °C (The temperature range is influenced by the battery characteristics)

• Signal-to-noise ratio ≥ 105 dB (A)

• RF frequency range 2,400 to 2,483.5 MHz

• Modulation GFSK with back channel

• Codecs APT-X Live

• Dynamic range > 135 dB (A)

• Audio sampling 24 bit/48 kHz

• Transmission method TDMA, time diversity, frequency diversity, fast switching antenna diversity

• Latency 3.9 ms

• AF frequency response 20 to 20.000 Hz

  EM D1

• Weight approx. 824 g

• Audio output Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu

• RF output power back channel 10 mW/100 mW (country-specific)

• Power supply 12 V DC hollow jack

• Current consumption 350 mA

• Deviation display OLED

• Low-cut filter –3 dB at 120 Hz

• RF sensitivity <-90 dBm

• Connection XLR/¼" (6.3 mm) jack

• Equalizer 7-band graphic equalizer

• Automatic gain control (AGC) compression/expansion with automatic make-up gain function

• Antenna Connector 2 x Rev-SMA

• Network socket RJ45

• Network protocol Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6

  What's in the box

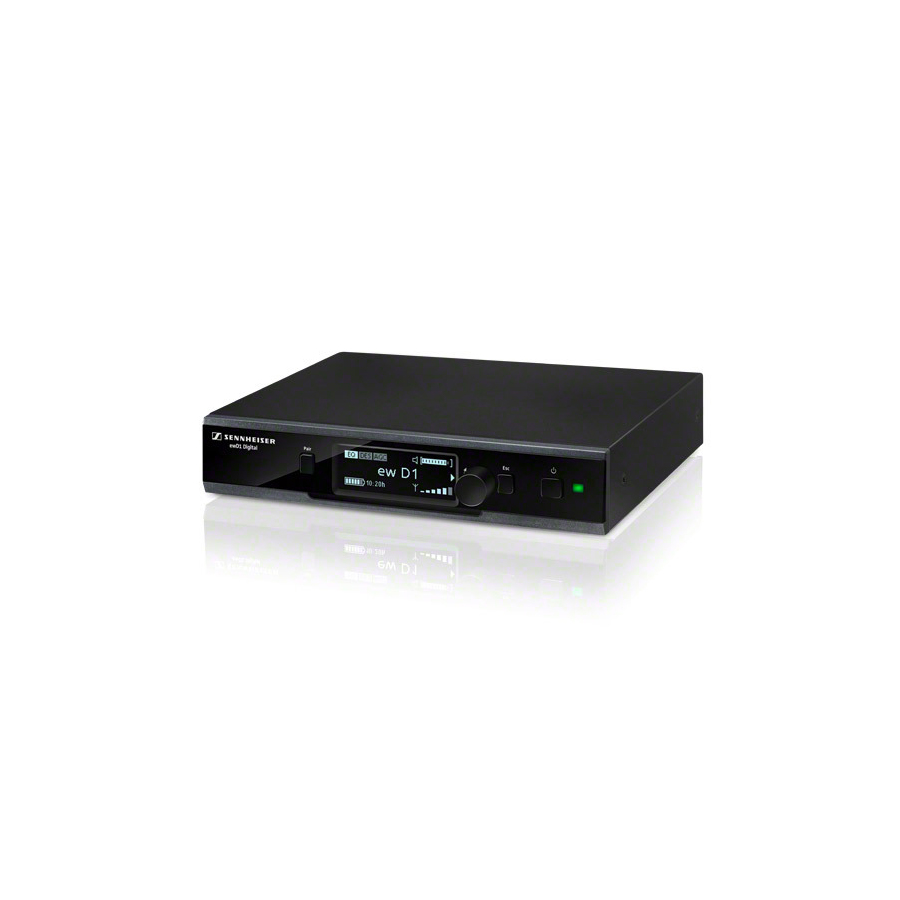

• EM-D1 rackmount receiver

• SK-D1 bodypack transmitter

• CI 1 jack cable

• NT-12 power supply

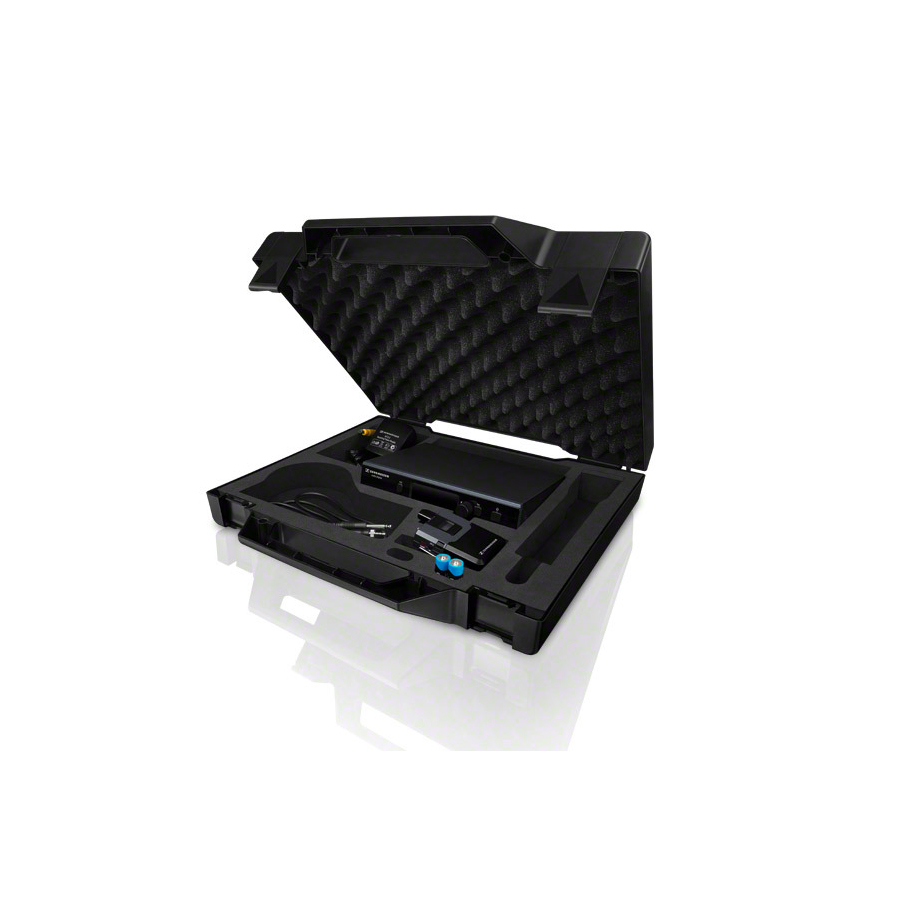

• Transport Case

• User Manual
