MC-202 has been tested to be in Good Working Order & Great Physical Condition as Shown with Accessories.

The Roland MC-202 (MicroComposer) is a monophonic analog synthesizer and music sequencer released by Roland in 1983. It was the first groovebox. Its synth is similar to the TB-303 bass synth and the SH-101 synthesizer, featuring one voltage-controlled oscillator with simultaneous saw and square/pulse-width waveforms. It is a successor to the Microcomposer family of sequencers, including the MC-8 and MC-4.The unit is portable and can be operated from batteries or an external power supply.
Synthesizer

The internal synthesizer features one voltage-controlled oscillator with simultaneous saw, square/pulse-width and sub-octave square waveforms. Additionally there is a 24dB Low Pass filter, an LFO and a single ADSR envelope generator.

In terms of circuitry, it is nearly identical to the earlier SH-101 synthesizers but lacks the noise generator, choice of LFO shapes and modulation/pitch bend controls. However, unlike the SH-101, it does include a delay on the LFO. The two units also share a design aesthetic in terms of the control layout, casing, lettering, knobs and slider caps

MPN: MC-202 PO
UPC: 761294513859

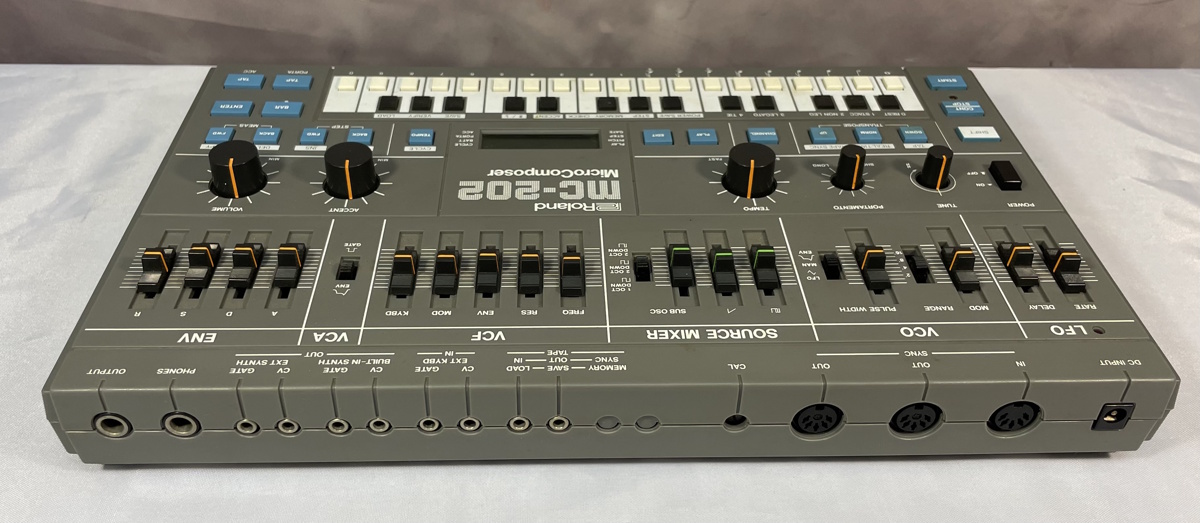

The MC-202 includes a sequencer that can play back two separate sequences simultaneously. Two sets of CV/Gate connectors on the rear of the unit allow for routing the sequences to external synthesizers. One of the two sequences is used to control the internal synthesiser. The sequencer is programmed much like Roland's early digital MC-4 and MC-8 Microcomposer sequencers, whereby notes are entered with pitch, length and gate length. Additionally, each note in the sequence can have an accent and slide, which is similar to the TB-303 and allows for so called acid sequences. The SH-101 lacks the ability to program accents.

The sequences are lost if the unit is powered down, however a tape interface is provided so that sequences can be stored to and recalled from an audio tape recorder.

There are DIN sync inputs and outputs which allow the unit to synchronise playback, either as master or slave, with other DIN sync-equipped instruments such as the TB-303 or the Roland TR-808. The unit can also generate and sync to frequency-shift keying signals from a tape recorder.

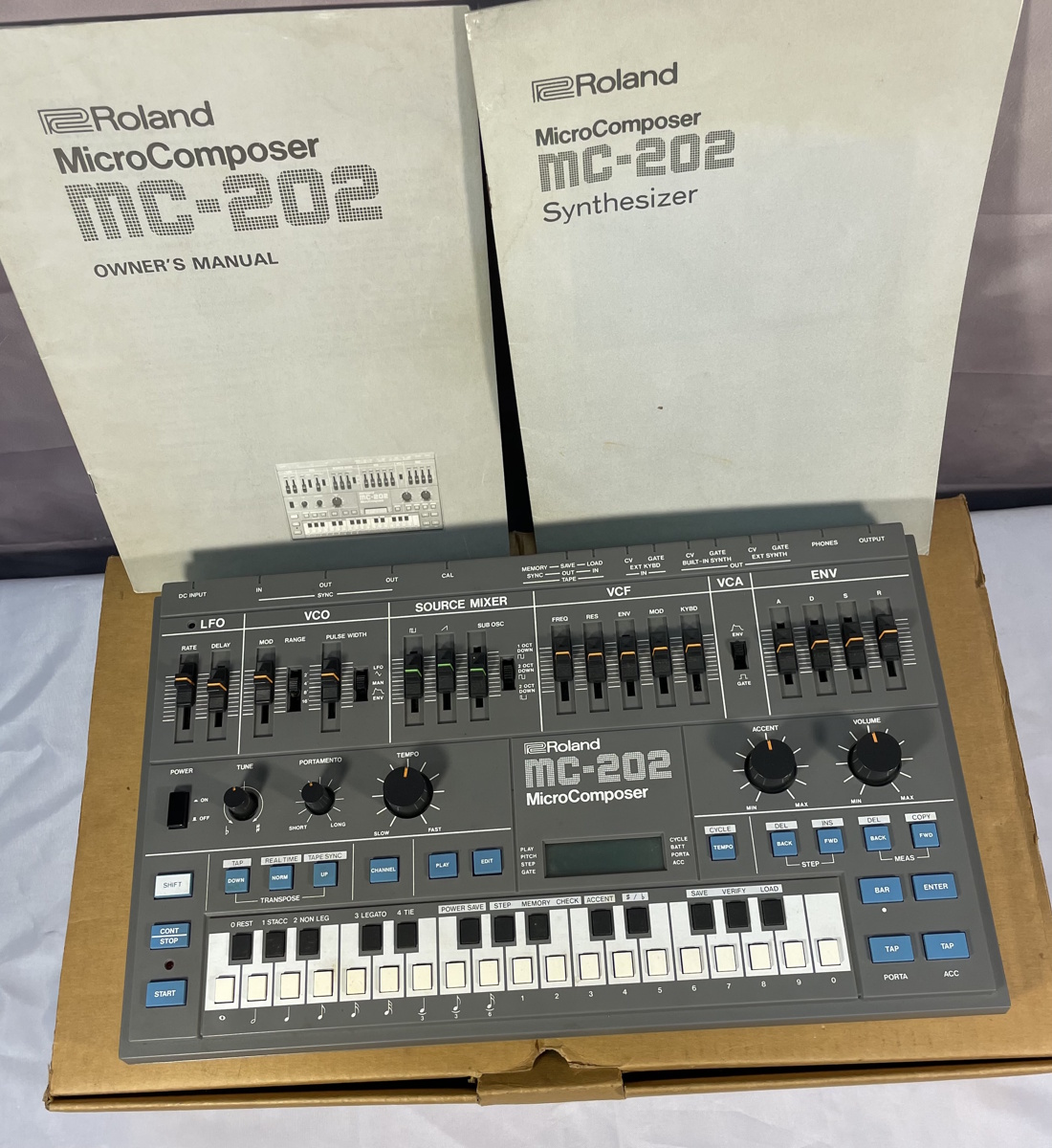

Includes; MC-202, Original Manuals, Original Box & Power Supply!
