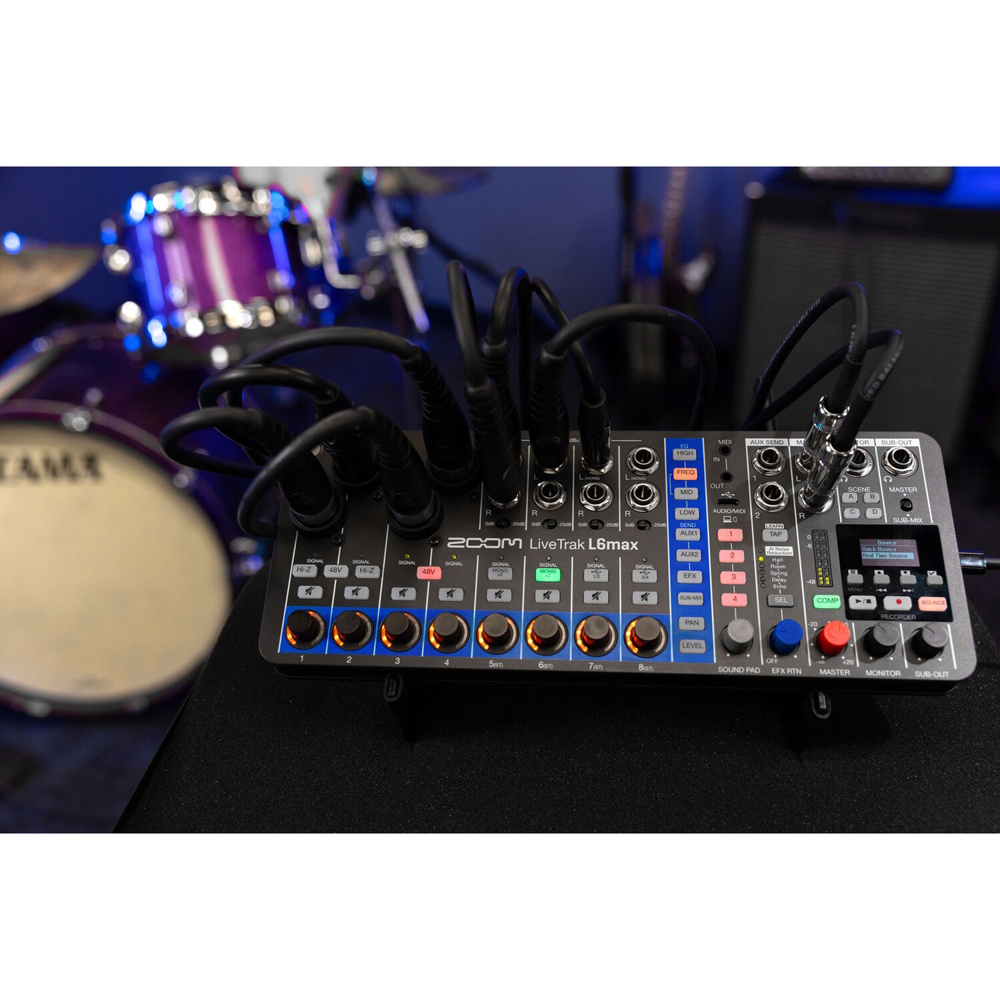

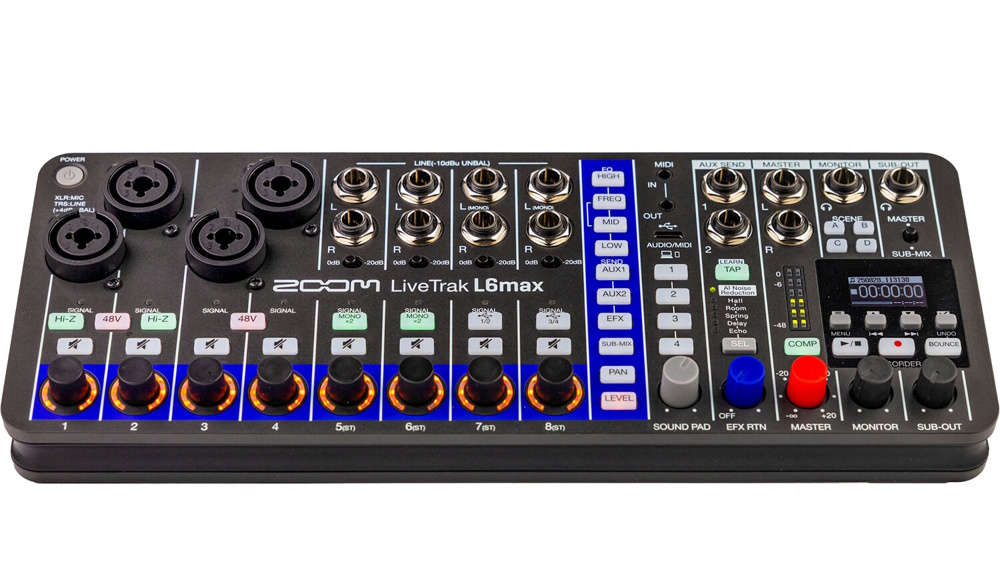

The LiveTrak L6max is packed with all the features you’d expect from a full-size mixer, plus a multi-track recorder. Compact, battery powered, and versatile, it’s ready to be the centerpiece of your live show, rehearsal, or podcast.

Using the channel strip buttons, you can access level, pan, EQ, and send amounts by adjusting the smooth, LED-laden encoders for each channel. In addition to two auxiliary sends for adding in your own effects, the L6 hosts five competent reverb and tap-tempo delay effects for adding space and richness to your sounds. The master bus features a compressor/limiter effect to boost and level your mix to a healthy volume. All these settings are controllable via the L6's 3.5mm TRS and USB MIDI connections. There are three slots to save mixer and tempo settings, making it effortless to get set up with your preferred mix for live scenarios. On top of all this capability, the L6 also features a four-slot sound pad sample player, useful for simple soundboard drops, filling space between songs, or even creative use of the mixer as an instrument.

If you're looking for a compact mixing and recording solution for your live shows, podcasts, or a small bedroom studio, the Zoom LiveTrak L6 punches well above its price point with useful and creative features, high quality sound, and the convenience and reliability that modern workflows demand.

Pro-Level Mixer Functions

Flexible Routing with AUX Sends

Two AUX sends with pre/post-fader options for FX loops and monitor feeds.

Scene Memory

Store up to four mixes and recall them anytime with a single button.

Sound Pads with MIDI Sync

Trigger jingles, sound effects, or samples instantly. Sound pads sync to MIDI clock for live electronic performances.

MIDI I/O and USB MIDI

Connect external synths and grooveboxes or integrate with MIDI apps on computer and mobile devices.

Additional Features

Customize pads, effects, and MIDI assignments with the free L6 Editor app
Stay mobile with multiple powering options including batteries and USB
Designed for Eurorack integration with optional hardware


12 channels with 4 combo inputs (2 with Hi-Z) and 8 line inputs
Two headphone outputs with customizable Sub-Out mix
-20 dB PAD switches on channels 5–8 for loud sources
High-contrast OLED display for easy navigation
AI Noise Reduction for cleaner recordings
32-bit float recording with dual-AD converters on channels 1–4
3-band EQ on every channel
Onboard effects: Reverb, Delay, and Echo with TAP tempo
Advanced master compressor for punch and saturation
USB audio interface: 32-bit float 12-in / 4-out, with DAW control surface mode
Pro-level mixer functions including AUX sends, scene memory, sound pads, and MIDI I/O
Multiple power options: AA batteries, USB bus power, or mobile battery pack

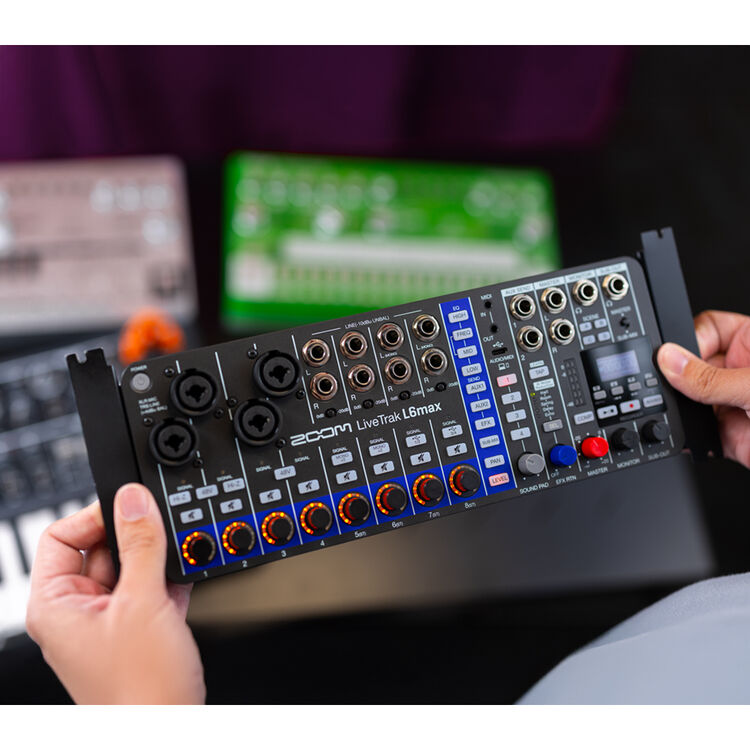

Eurorack mountable with optional ERL-6 rack ears

MPN: ZL6MAX
UPC: 4515260030033

• Inputs

  MIC/LINE (mono): 4
  LINE (stereo): 4
  AUX SEND (mono): 2
  MASTER (stereo): 1
  MONITOR (stereo): 1

  Outputs

  SUB-OUT (stereo): 1
  Connectors: 4 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
  Input Gain: Adjustment unnecessary (dual A/D converter circuits used)
  Input Impedance: XLR: 3.8 kΩ or more, TRS: 18 kΩ or more (Hi-Z off), 1 MΩ or more (Hi-Z on)
  Maximum Input Level: XLR: +4 dBu, TRS: +24 dBu
  Phantom Power: +48 V (channel total 20 mA or less)

  LINE Inputs

  Connectors: 8 TS phone jacks
  Input Impedance: 30 kΩ or more
  Maximum Input Level: +4 dBu (PAD 0 dB), +24 dBu (PAD -20 dB)

  AUX SEND

  Connectors: 2 TRS phone jacks (impedance balanced)
  Maximum Output Level: +9.5 dBu
  Output Impedance: 147 Ω

  MASTER

  Connectors: 2 TRS phone jacks (balanced)
  Maximum Output Level: +15 dBu
  Output Impedance: 147 Ω

  MONITOR / SUB-OUT

  Connector: TRS phone jack
  Maximum Output Level: 50 mW + 50 mW (63 Ω load)
  Output Impedance: 14.7 Ω

  Buses

  MASTER: 1
  SUB-MIX: 1
  AUX SEND: 2


  The Power of a Studio. The Freedom of a Compact Mixer.

  Manufacturer: Zoom
  Model: L6 MAX
  SKU: I849645-N-2-WHXX
  EAN: 4515260030033
