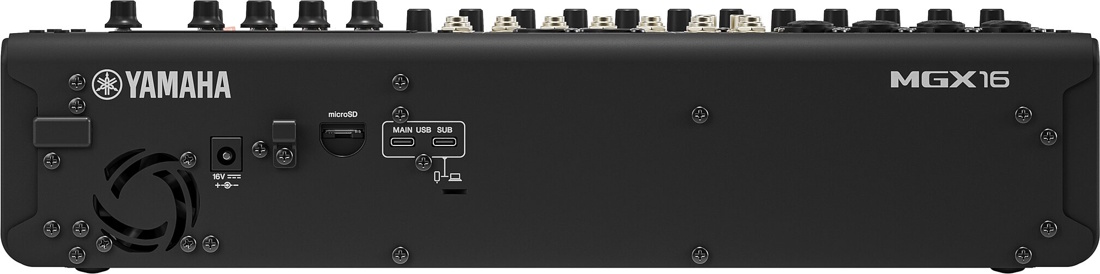

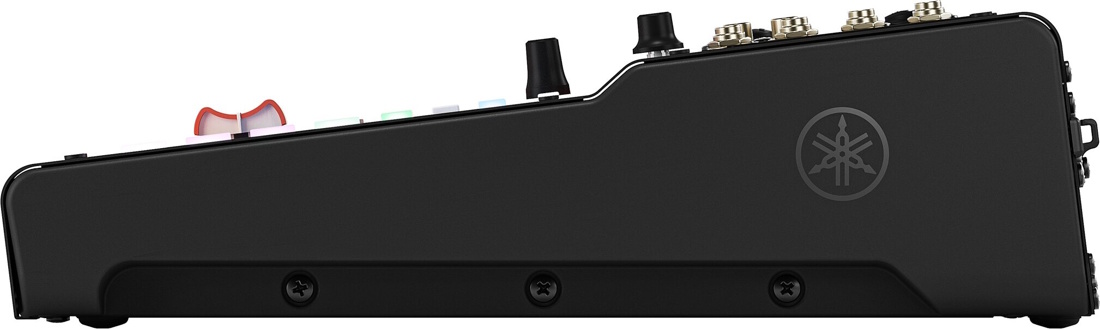

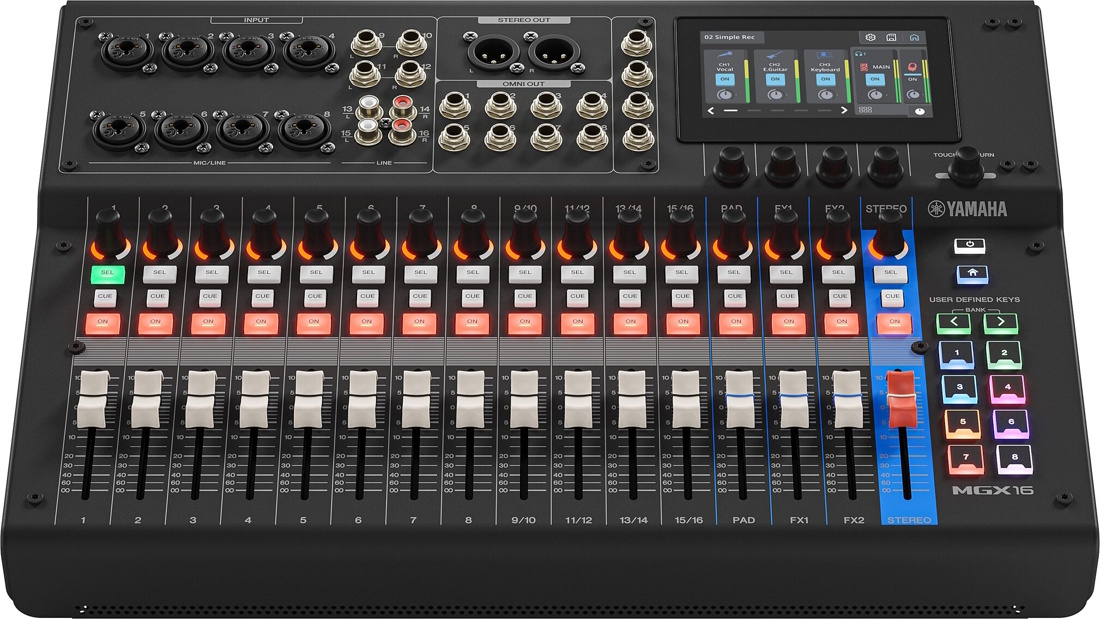

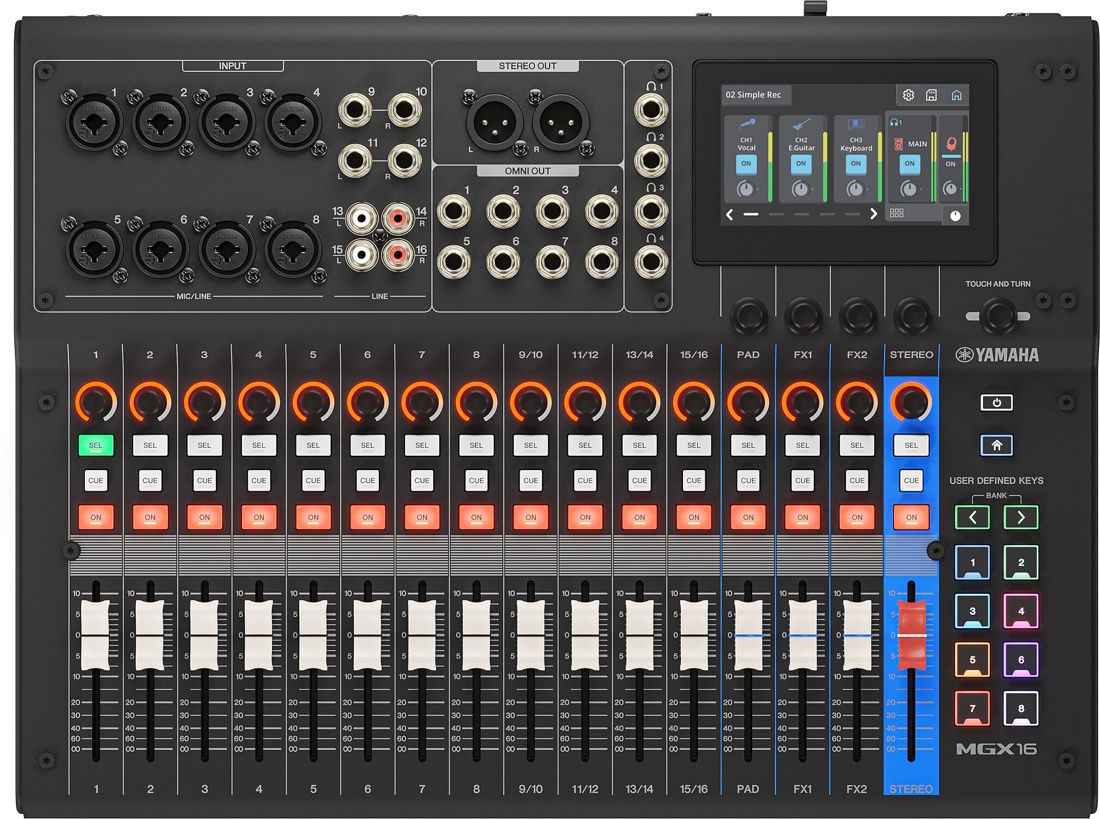

The MGX16 is a compact digital mixing console designed for demanding audio applications. It delivers premium sound quality, flexible I/O, and fast, intuitive operation through a touchscreen interface and dedicated controls. Suited for live sound, recording, streaming, and installed systems, the MGX16 balances professional performance with a streamlined workflow, making it a reliable solution for engineers, creators, and venues alike.

MPN: MGX16B
UPC: 889025170833

• 22-channel digital mixer with professional-grade audio performance

• 15 + 1 non-motorized faders for precise, hands-on mixing

• 4.3-inch touchscreen with five assignable control knobs

• Dual USB-C audio interfaces for recording and playback

• Built-in DSP for effects and latency-free monitoring

• Bluetooth audio input (Bluetooth 5.0, A2DP)

• Standalone multitrack recording via microSD card

• Assistive tools including Auto Gain, Clip Safe, and Scene Recall

• Input Channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX returns

• Busses: 8 Mix + 2 FX + 1 Cue + 1 Stereo

• Local Inputs:
  8 Mic/Line (XLR/TRS combo)
  8 Line (4 TRS, 4 RCA)

• Local Outputs: 2 XLR, 8 TRS, 4 headphone outputs

• USB Main: 22 inputs / 22 outputs, 32-bit / 96 kHz

• USB Sub: 2 inputs / 2 outputs, 16-bit / 48 kHz

• Bluetooth Audio: 2-channel input

• microSD Card: 16-track recording / 2-track playback (up to 24-bit / 96 kHz)

• Dimensions (HxWxD): 3.8" × 16.5" × 12.5" (95.4 × 419 × 318.4 mm)

• Weight: 10.4 lb (4.7 kg)
