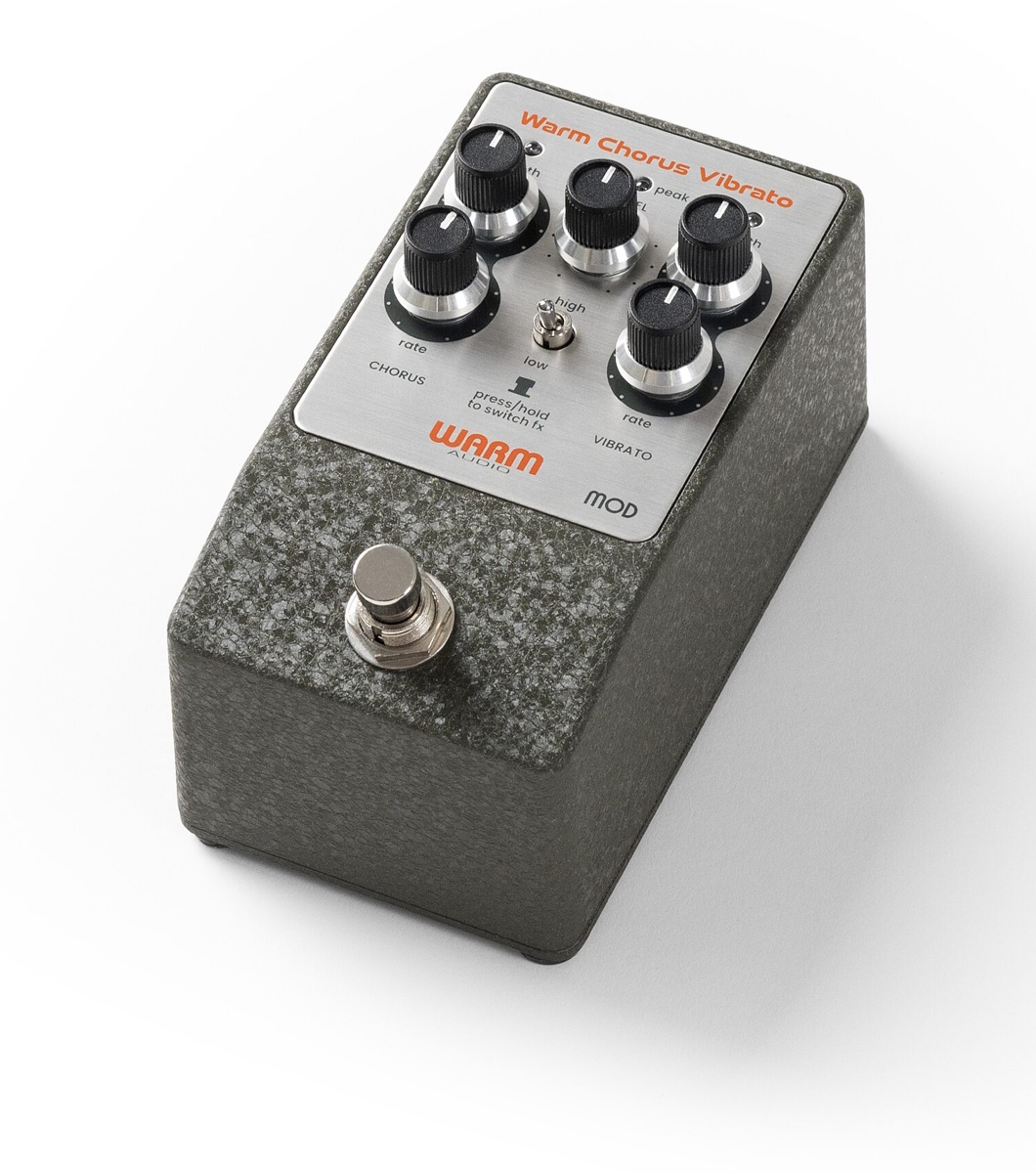

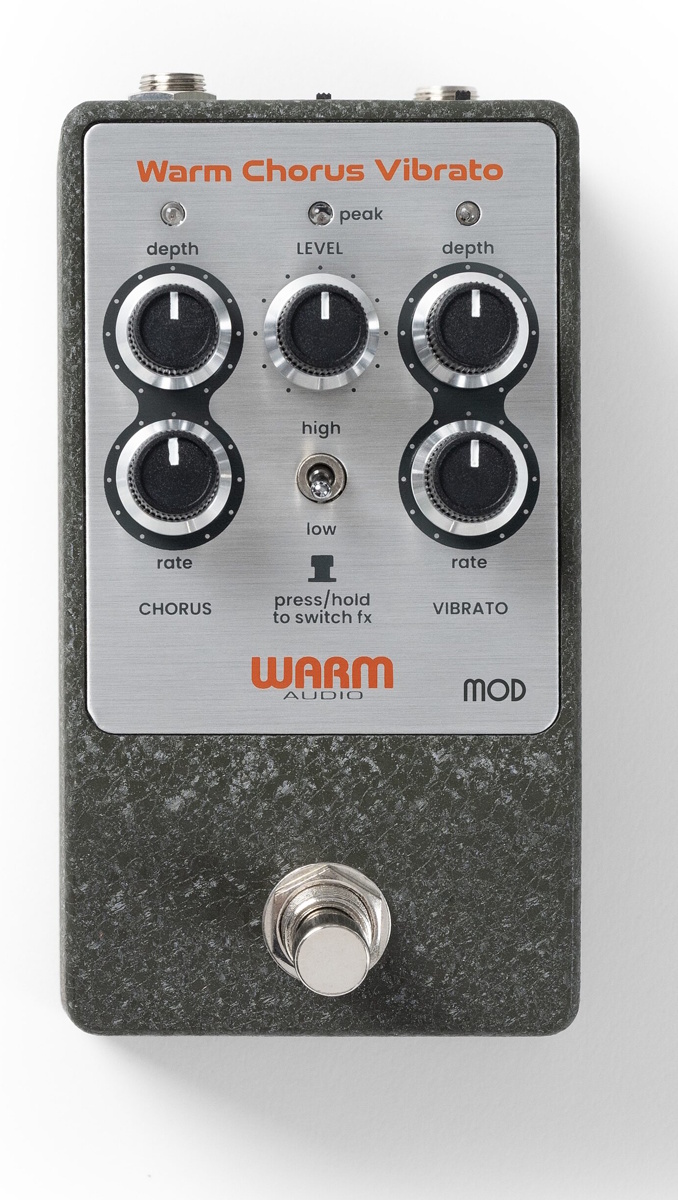

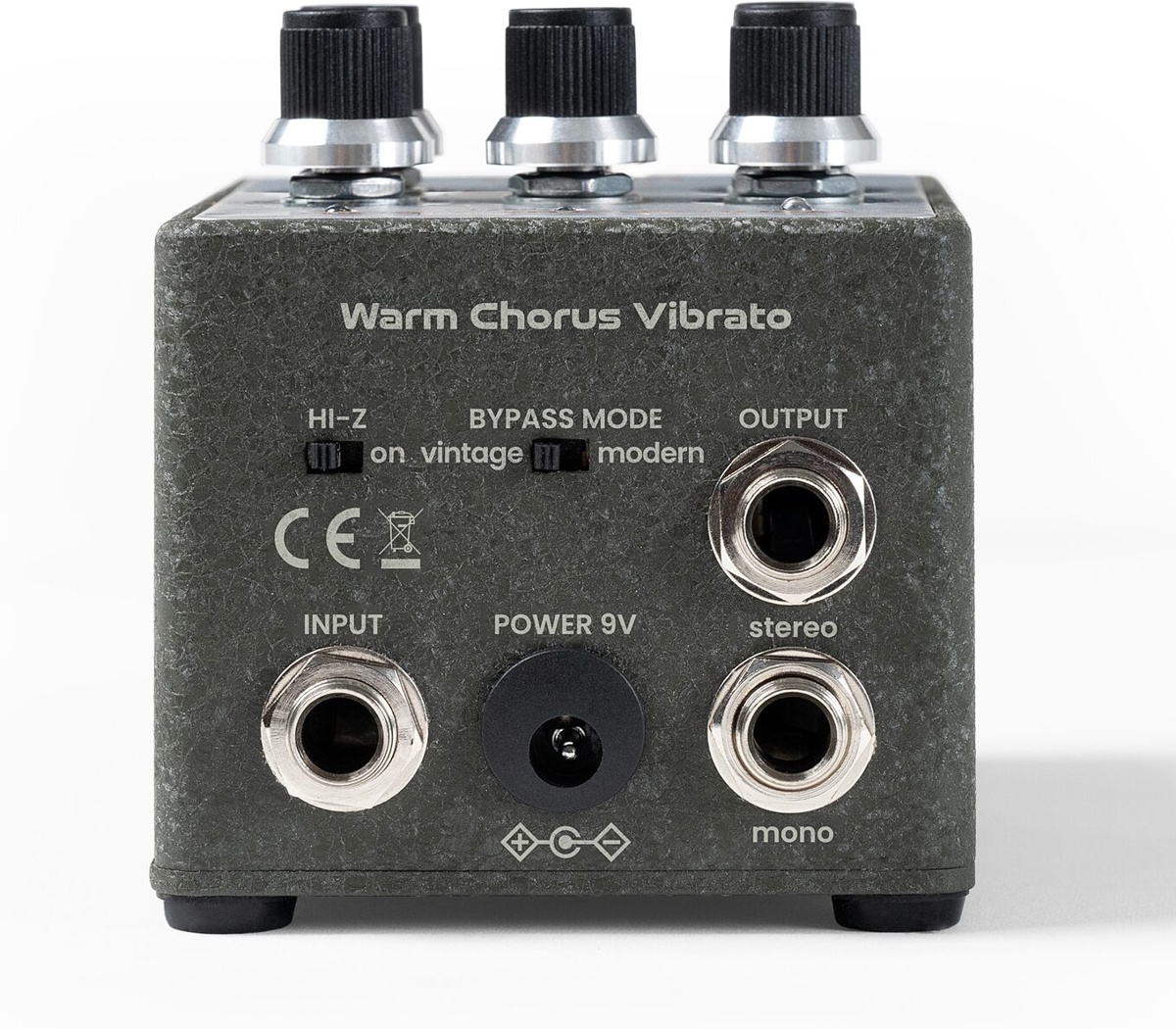

The WA-C1 Chorus Vibrato Mod is a pedalboard-friendly recreation of the most celebrated all-analog chorus in guitar pedal history with additional no-compromise features for exploring legendary modulated tones. The WA-C1 Mod starts with a premium, all-analog preamp known for being a favorite of guitar players who demand ultra-responsiveness, now fully bypassable to accommodate complex rigs. The lush chorus setting features separated depth and rate controls to expand beyond the limitations of vintage units while delivering true-to-original tone. The vibrato section is preserved as authentic to the original pedals, and an added hi-z switch on the back of the pedal allows players to compensate for higher impedance of guitars vs. keyboards to add clarity to the high end on guitars if desired.

MPN: WA-C1-Mod
UPC: 850031640948

• 100% Analog Compact Stereo Chorus & Vibrato Pedal
• With Separate Controls For Depth & Rate, Selectable
• Impedance & A Bypassable Analog Preamp

• Controls: High/Low Input Sensitivity, Preamp Level,
• Chorus Depth & Rate, Vibrato Depth & Rate, Effect On/
• Off, Chorus/Vibrato Switch, Vintage/Modern Preamp Switch, Hi-Z On/Off.

• Components: (5X) IC’s (Including 3X Texas Instruments Premium Audio Op Amps In Signal Path) | (11X) Discrete Transistors | (3X) FETs | (19X) Diodes 2 x MOSFETs and a premium MN3007 BBD chip recreation.

• Power consumption: 800mW; 200mA at 9V With Vintage-
• Correct Internal Voltage Operation Via Dual DC-DC Voltage Converter

• Input sensitivity: 80mV /1 0mV

• Output level: 315mV | Jacks: (1X) Input, (2X) Outputs

• Dimensions: W: 2.8” | L: 4.5” | H: 2.4” | Weight: 1lb
